The 1200 Series LabMate Workstation has been thoroughly tested and proven to provide a dependable, vibration-free working environment.
Typical Applications
Confocal microscopes, electrophysiology, optical microscopes, tunneling microscopes, Surface plates, analytical balances, cell injection, wafer probing, roundness checkers, mask aligners, CMMs, and prober applications.
Features and Benefits
- Perfect for higher centers of gravity and shifting loads
- Isolation effectiveness is almost at 100%
- Vertical natural frequencies that are extremely low
- Height control and automatic leveling
- Excellent Active-Air Suspension
- VibraDamped for improved performance
- 1 ” thick vibra-damped steel or 4 ” granite tabletops
- Choose from 20 standard sizes; custom sizes are also available
- Suitable for Class 100 cleanrooms; Class 10 is offered
Specifications

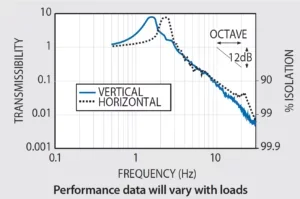

Performance Data. Source: Kinetic Systems, Inc.
| Min. Load @ 20 psi |
| Vertical Natural Frequency |
2.1 Hz |
| Isolation Efficiency @ 5 Hz |
43 % |
| Isolation Efficiency @ 10 Hz |
89 % |
| Horizontal Natural Frequency |
3.5 Hz |
| Isolation Efficiency @ 5 Hz |
40 % |
| Isolation Efficiency @ 10 Hz |
80 % |
| Max. Load @ 80 psi |
| Vertical Natural Frequency |
1.6 Hz |
| Isolation Efficiency @ 5 Hz |
76 % |
| Isolation Efficiency @ 10 Hz |
93 % |
| Horizontal Natural Frequency |
2.5 Hz |
| Isolation Efficiency @ 5 Hz |
75 % |
| Isolation Efficiency @ 10 Hz |
88 % |
| Gross Load Capacity @ 80 psi |
| 1201 |
1300 lbs. (590 kg) |
| 1202 |
2800 lbs. (1270 kg) |
| Finish |
| Standard |
Charcoal
Grey
Medium
Textured
Polyurethane |
| Class 10 |
White Epoxy
Powder Coat |
Note: Typical performance efficiencies are for microdisturbances.

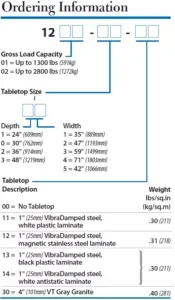

Image Credit: Kinetic Systems, Inc.
Image Credit: Kinetic Systems, Inc.

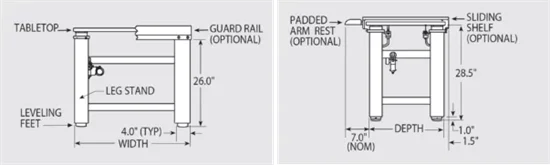

Configurations
Image Credit: Kinetic Systems, Inc.
