Enhance the Workspace with the 9100 Series Vibration Isolation System

The 9100 Series Vibration Isolation Workstation is the industry standard for most vibration control applications.

With various worksurfaces and accessories, the 9100 Series provides a comfortable workstation that can be customized to meet unique needs. It is intended to isolate delicate equipment and experiments that weigh up to 1300 lbs.

The 9100 provides horizontal and vertical isolation. Regardless of the load added or removed, the worksurface, supported by a VibraDamped steel frame with Active-Air suspension, will always maintain a predefined zero deflection level.

With two load capabilities, the 9100 Series can be field-converted to the required capacity.

Typical Applications

Mask alignment, confocal microscopes, analytical balances, cell injection, atomic force microscopes, wafer probing, mask alignment, confocal microscopes, analytical balances, patch clamping, optical microscopes, and microscopes.

Optional Accessories

• Padded Arm Rests
• Retractable Casters – Easily Move your Workstation in the Lab
• Faraday Cage
• Fixed Shelves – Standard and Custom Sizes
• Sliding Shelves – Gain More Tabletop Work Area
• Monitor Support – Offered for Both CRT and FPD
• Keyboard Shelf
• Overhead Rear Equipment Shelf
• Overhead Side Equipment Shelf
• Enclosures – Additional Protection for Your Sensitive Equipment
• Portable Air Compressor
• Electrical Outlet Strip
• Custom Sizes
• Class 10 Cleanroom Compatible Finish
• Guard Rails – Front and Rear
• Side Guard Rails

Features and Benefits

• Choose from 12 common sizes – bespoke sizes are also available
• Class 100 Cleanroom Compliant with Ergonomic Design – Class 10 available
• Repeatable and precise leveling accuracy to 0.001” with high-accuracy valve
• Tabletop uplimit travel restraints
• Ergonomic styling
• Horizontal vibration isolation
• Vertical vibration isolation
• VibraDamped steel frame
• Retains a predetermined zero deflection level (regardless of load addition or removal)
• High-performance Active-Air Suspension
• Choose from 12 pre-made tabletops – personalized tabletops are also available

Specifications

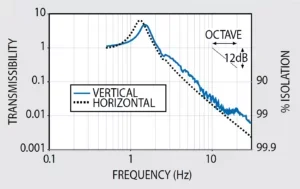

Transmissibility. Image Credit: Kinetic Systems, Inc.

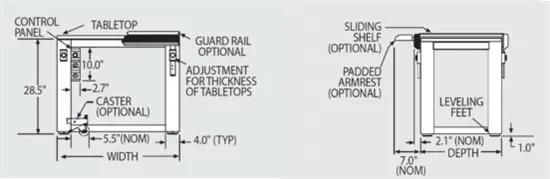

Standard Dimensions. Image Credit: Kinetic Systems, Inc.

Performance Data. Source: Kinetic Systems, Inc.

Note: Typical performance efficiencies are for microdisturbances

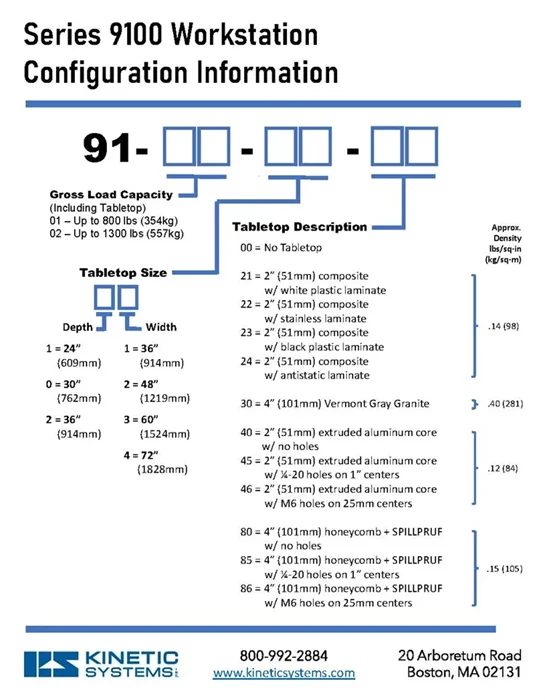

Configuration

Image Credit: Kinetic Systems, Inc.
