Cell injection, wafer probing, metrology, microscopy, optical microscopes, mask aligning, confocal microscopes, atomic force microscopes, and patch clamping are common uses for the 2000 Series Variable Height Workstations.
Features and Benefits
- Automatic leveling control
- Class 100 Cleanroom Compatible — Class 10 available
- Tabletop uplimit travel restraints
- Rear and front guard rails standard
- Superior Active-Air Suspension System
- VibraDamped steel construction
- Choose from ten tabletops that are available in twelve standard sizes
- Infinitely modifiable over a 12-inch range
Specifications

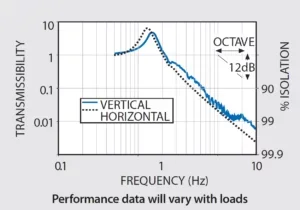

Performance Data. Source: Kinetic Systems, Inc.
| Min. Load @ 20 psi |
| Vertical Natural Frequency |
1.9 Hz |
| Isolation Efficiency @ 5 Hz |
70 % |
| Isolation Efficiency @ 10 Hz |
90 % |
| Horizontal Natural Frequency |
2.2 Hz |
| Isolation Efficiency @ 5 Hz |
64 % |
| Isolation Efficiency @ 10 Hz |
90 % |
| Max. Load @ 80 psi |
| Vertical Natural Frequency |
1.5 Hz |
| Isolation Efficiency @ 5 Hz |
85 % |
| Isolation Efficiency @ 10 Hz |
97 % |
| Horizontal Natural Frequency |
1.2 Hz |
| Isolation Efficiency @ 5 Hz |
91 % |
| Isolation Efficiency @ 10 Hz |
97 % |
| Gross Load Capacity @ 80 psi |
| 2001 |
800 lbs. (363 kg) |
| 2002 |
1300 lbs. (590 kg) |
| Finish |
| Standard |
Linear White
Smooth
Polyurethane |
| Class 10 |
White Epoxy
Powder Coat |
Note: Typical performance efficiencies are for microdisturbances.

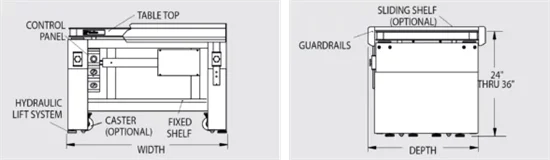

Image Credit: Kinetic Systems, Inc.
Image Credit: Kinetic Systems, Inc.
