2212 Series Active-Air BenchMate - Self-Stabilizing Anti-Vibration Platforms

BenchMate Vibration-Free Platforms enable more efficient operation of precision tabletop equipment.

The self-leveling 2212 Series requires compressed air, which is not supplied. It is suitable for daily usage.

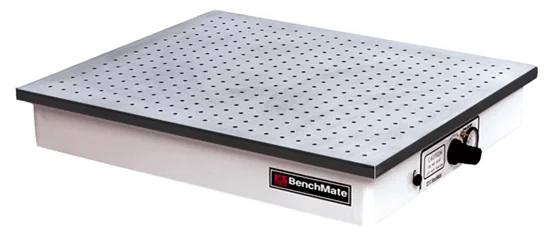

2212 Series Active-Air BenchMate - Self-Stabilizing Anti-Vibration Platforms

Image Credit: Kinetic Systems, Inc.

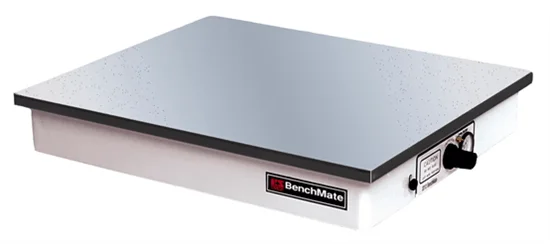

2212 Series Active-Air BenchMate - Self-Stabilizing Anti-Vibration Platforms

Image Credit: Kinetic Systems, Inc.

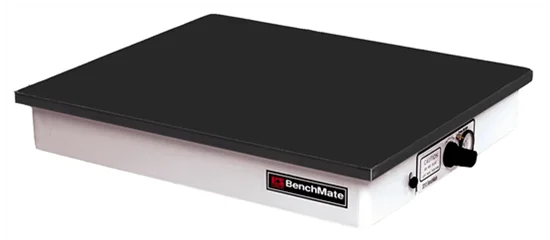

2212 Series Active-Air BenchMate - Self-Stabilizing Anti-Vibration Platforms

Image Credit: Kinetic Systems, Inc.

Typical Applications

Audio equipment, balances, profilometers, atomic force microscopes, microhardness testers, and other precise measuring and testing devices.

Features and Benefits

  • Flatness: ±0.004” over 24×24 ” on -22 and -32 top surfaces
  • SPILLPRUF spill management
  • Compatible with Class 100 cleanrooms – Class 10 is also available
  • Low-profile Active Air design
  • Supreme price/performance
  • VibraDampened construction
  • Low inherent frequency

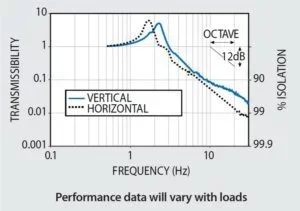

Performance Data

Performance Dara. Source: Kinetic Systems, Inc.

Min. Load @ 20 psi
Vertical Natural Frequency 2.3 Hz
Isolation Efficiency @ 5 Hz 52 %
Isolation Efficiency @ 10 Hz 83 %
Horizontal Natural Frequency 2.9 Hz
Isolation Efficiency @ 5 Hz 40 %
Isolation Efficiency @ 10 Hz 92 %
Max. Load @ 80 psi
Vertical Natural Frequency 2.1 Hz
Isolation Efficiency @ 5 Hz 70 %
Isolation Efficiency @ 10 Hz 91 %
Horizontal Natural Frequency 1.8 Hz
Isolation Efficiency @ 5 Hz 81 %
Isolation Efficiency @ 10 Hz 95 %
Net Load Capacity @ 80 psi
2212-02/03 450 lbs. (204 kg)
Finish
Standard Linear White
Polyurethane
Class 10 White Epoxy
Powder Coat
Approximate Shipping Weight
2212-01-xx 157 lbs. (72 kg)
2212-02-xx 210 lbs. (96 kg)
2212-03-xx 245 lbs. (112 kg)
2212-04-xx 145 lbs. (66 kg)

Note: Typical performance efficiencies are for microdisturbances.

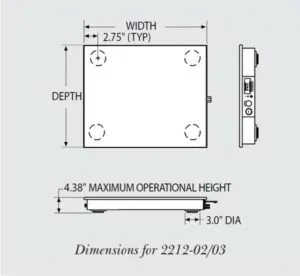

2212 Series Active-Air BenchMate - Self-Stabilizing Anti-Vibration Platforms

Image Credit: Kinetic Systems, Inc.

2212 Series Active-Air BenchMate - Self-Stabilizing Anti-Vibration Platforms

Image Credit: Kinetic Systems, Inc.

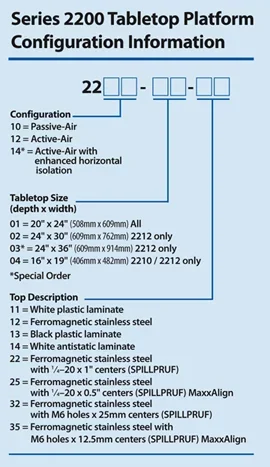

Configuration

2212 Series Active-Air BenchMate - Self-Stabilizing Anti-Vibration Platforms

Image Credit: Kinetic Systems, Inc.
