The Personal LabMate Vibration Isolation Workstation from the 9200 Series is ideal for limited floor space. It can handle loads up to 440 lbs.
Typical Applications
Surface profilometers, roundness checkers, cell injection, balances, and optical microscopes.
Features and Benefits
- Suitable for Class 100 cleanrooms; Class 10 is offered
- Standard front guard rail
- Leveling feet
- Tabletop uplimit travel restrictions
- Superior Active-Air Suspension System
- Vertical and horizontal vibration isolation
- Ergonomic design
- 1” Thick VibraDamped steel tabletop
- Automatic leveling
Specifications

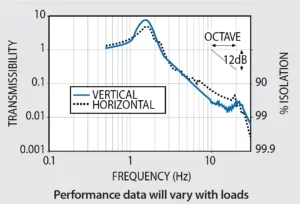

Performance Data. Source: Kinetic Systems, Inc.
| Min. Load @ 20 psi |
| Vertical Natural Frequency |
2.1 Hz |
| Isolation Efficiency @ 5 Hz |
72 % |
| Isolation Efficiency @ 10 Hz |
95 % |
| Horizontal Natural Frequency |
1.8 Hz |
| Isolation Efficiency @ 5 Hz |
82 % |
| Isolation Efficiency @ 10 Hz |
93 % |
| Max. Load @ 80 psi |
| Vertical Natural Frequency |
1.5 Hz |
| Isolation Efficiency @ 5 Hz |
85 % |
| Isolation Efficiency @ 10 Hz |
97 % |
| Horizontal Natural Frequency |
1.6 Hz |
| Isolation Efficiency @ 5 Hz |
84 % |
| Isolation Efficiency @ 10 Hz |
94 % |
| Gross Load Capacity @ 80 psi |
| 600 lbs. (272 kg) |
|
| Finish |
| Standard |
Linear White
Smooth Polyurethane |
| Class 10 |
White Epoxy
Powder Coat |
Note: Typical performance efficiencies are for microdisturbances.
Image Credit: Kinetic Systems, Inc.
Image Credit: Kinetic Systems, Inc.

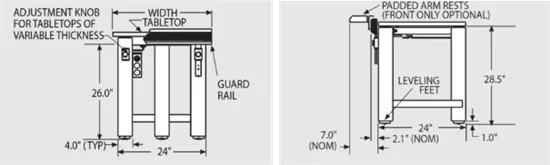

Configuration
Image Credit: Kinetic Systems, Inc.
