Ellipsometry and reflectometry are optical measurement techniques used for surface analysis and thin-film characterization.1 Both methods rely on light reflection but differ in their approach. Ellipsometry analyzes changes in the polarization state of reflected light, while reflectometry measures its intensity.2 The choice between ellipsometry and reflectometry depends on measurement principles, sensitivity, and data interpretation requirements. Each technique serves specific roles in material science and surface analysis.

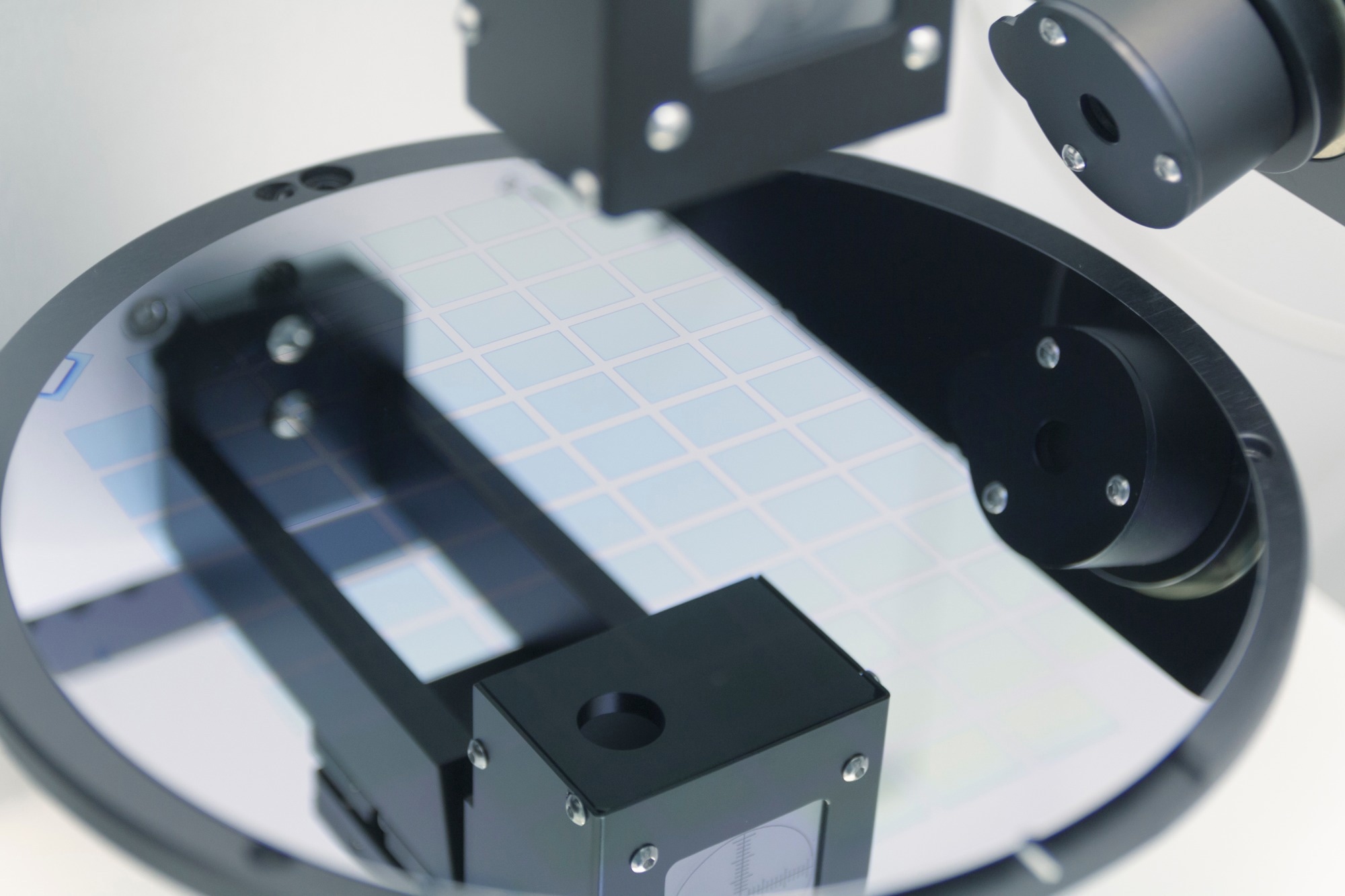

Image Credit: Titolino/Shutterstock.com
Key Differences
Light Incidence and Optical Complexity
The angle of light incidence distinguishes ellipsometry from reflectometry in terms of cost, complexity, and functionality.
Ellipsometry requires light to strike the surface at an angle, measuring both the intensity and polarization of the reflected light. This dual analysis allows spectroscopic ellipsometry to characterize extremely thin and complex film stacks with high precision. However, analyzing polarization necessitates advanced optical components with precise motion control, increasing system cost and complexity.
Reflectometry, in contrast, typically uses light that strikes the surface perpendicularly, minimizing polarization effects—especially in films with rotational symmetry. This simplifies instrumentation by eliminating the need for moving components, resulting in more affordable and accessible systems. Additionally, reflectometry can integrate transmittance analysis, expanding its analytical applications.3
Both techniques are widely used in thin-film solar cell analysis. Spectroscopic ellipsometry has been applied to map the optical properties of CdTe solar cells, correlating material characteristics with device performance.4 Meanwhile, the National Renewable Energy Laboratory (NREL) developed a PV-Reflectometer to monitor the average reflectance of solar cell wafers, facilitating process control during manufacturing. These examples illustrate how ellipsometry provides detailed optical characterization, while reflectometry enables efficient quality control.
Measurement
Ellipsometry and reflectometry use different methods for material analysis.
Ellipsometry measures changes in the polarization state of light after reflection. It focuses on two key parameters: the amplitude ratio (Ψ), which describes changes in the magnitude of polarized light components, and the phase difference (Δ), which captures the shift between s-polarized (perpendicular) and p-polarized (parallel) light.
These measurements enable the calculation of optical constants such as refractive index (n), extinction coefficient (k), and thin-film thickness. Achieving this level of precision requires advanced instrumentation, including polarized light sources, modulators, and analyzers that precisely control and measure polarization states.3
In contrast, reflectometry measures the intensity of reflected light as a function of angle or wavelength without analyzing polarization changes. It applies the Fresnel equations to relate reflection intensity to material properties such as thickness and refractive index.
Reflectometry does not require polarization analysis, making it simpler and less complex instrumentally. By focusing solely on reflected light intensity, it provides a straightforward method for material characterization, though it lacks the depth of detail available through ellipsometry.5
Sensitivity
Ellipsometry is highly sensitive to small variations in material properties and thin-film thickness, often down to sub-nanometer levels. It can detect molecular-scale changes in a sample’s optical properties, making it well-suited for analyzing ultra-thin films and layered structures. This sensitivity is achieved by measuring both the amplitude and phase changes of polarized light.
Reflectometry is more effective for assessing bulk properties such as surface roughness and layer thickness but is less sensitive to molecular-scale variations. It provides reliable measurements for thicker films and simpler structures but is not ideal for very thin or multilayered materials. Sensitivity depends on the wavelength of the light source and the precision of intensity measurements.
Data Interpretation
Ellipsometry analyzes changes in both the amplitude and phase of polarized light after reflection. This dual measurement provides detailed information on film thickness, refractive index, and extinction coefficient. However, interpreting ellipsometric data requires mathematical modeling and expertise, particularly for multilayered or ultra-thin films. Models must account for material composition, layer structure, and potential anisotropies. As a result, ellipsometry provides detailed and highly accurate characterizations, but the process can be time-consuming and technically challenging.6
Reflectometry interprets data based on reflected light intensity across different wavelengths. Without polarization or phase information, analysis is more straightforward and relies on reflectance curves to estimate film properties. This simplicity allows for faster measurements but limits sensitivity, particularly for ultra-thin or intricate film structures. While effective for determining thickness and surface roughness, reflectometry lacks the precision required for detailed multilayer analysis and is best suited for applications where rapid measurements are prioritized over complex characterization.6
Choosing the Right Technique
The choice between ellipsometry and reflectometry depends on the required level of detail, sensitivity, and operational complexity.1,2
Ellipsometry:
Ellipsometry is widely used in the semiconductor industry for precise thin-film characterization. A study published in the Journal of Vacuum Science & Technology B demonstrated its effectiveness in analyzing ultra-thin dielectric layers in semiconductor devices, achieving nanometer-scale accuracy in refractive index and thickness measurements. Such precision is essential in integrated circuit manufacturing, where material properties directly influence device performance.7
- Advantages:
- Extremely sensitive to thin films and layered structures.
- Provides comprehensive measurements of optical constants (n, k) and thickness.
- Non-destructive and suitable for advanced material characterization.
- Disadvantages:
- Requires complex instrumentation and data modeling.
- Higher cost and technical demands.
- Best for:
- Applications requiring precise thin-film characterization, such as semiconductors, coatings, and advanced materials.
Reflectometry:
Reflectometry is commonly used in quality control for manufacturing processes. A study in the IEEE Journal of Photovoltaics applied reflectometry to monitor the uniformity and thickness of silicon solar wafers, ensuring consistent efficiency in solar panels. Similarly, research on large-scale automotive production demonstrated its effectiveness in evaluating surface coatings, detecting defects, and ensuring uniform application.9
- Advantages:
- Simpler instrumentation and faster measurements.
- Cost-effective for routine analyses.
- Suitable for evaluating surface roughness and bulk layer thickness.
- Disadvantages:
- Limited sensitivity to ultra-thin films and detailed material properties.
- Not ideal for complex multilayer structures.
- Best for:
- Basic surface analysis and thickness measurements in quality control or production environments.
Ellipsometry and reflectometry each offer distinct advantages, and selecting the appropriate technique depends on the required level of precision, sensitivity, and application needs.
To stay informed about the optical measurement technologies, explore these resources:
References and Further Reading
1. Joo KN, Park HM. Recent Progress on Optical Tomographic Technology for Measurements and Inspections of Film Structures. Micromachines. 2022;13(7). doi:10.3390/mi13071074. https://www.mdpi.com/2072-666X/13/7/1074
2. Van Duijvenbode RC, Koper GJM. A comparison between light reflectometry and ellipsometry in the rayleigh regime. J Phys Chem B. 2000;104(42):9878-9886. doi:10.1021/jp001832m. https://pubs.acs.org/doi/10.1021/jp001832m
3. King RJ, Talim SP. A comparison of thin film measurement by guided waves, ellipsometry and reflectometry. Opt Acta (Lond). 1981;28(8):1107-1123. doi:10.1080/713820674. https://doi.org/10.1080/713820674
4. Koirala P, Tan X, Li J, et al. Mapping spectroscopic ellipsometry of CdTe solar cells for property-performance correlations. In: 2014 IEEE 40th Photovoltaic Specialist Conference, PVSC 2014. ; 2014:674-679. doi:10.1109/PVSC.2014.6925011. https://ieeexplore.ieee.org/document/6925011
5. Kohli S, Rithner CD, Dorhout PK, Dummer AM, Menoni CS. Comparison of nanometer-thick films by x-ray reflectivity and spectroscopic ellipsometry. Rev Sci Instrum. 2005;76(2):10-15. doi:10.1063/1.1848660. https://api.mountainscholar.org/server/api/core/bitstreams/ed140174-509b-4aa2-a246-041cf0548dcc/content
6. Tompkins HG, Baker JH, Smith S, Convey D. Spectroscopic Ellipsometry and Reflectometry: A User’s Perspective.; 2000. doi:10.1109/LEOSST.2000.869717. https://ieeexplore.ieee.org/document/869717
7. Price J, Diebold AC. Spectroscopic ellipsometry characterization of ultrathin silicon-on-insulator films. J Vac Sci Technol B Microelectron Nanom Struct Process Meas Phenom. 2006;24(4):2156-2159. doi:10.1116/1.2213265. https://pubs.aip.org/avs/jvb/article/24/4/2156/963333/Spectroscopic-ellipsometry-characterization-of
8. Vahlman H, Al-Hajjawi S, Haunschild J, et al. Monitoring of porous silicon layers for epitaxial wafer production using inline reflectance spectroscopy. AIP Conf Proc. 2023;2826(4):989-998. doi:10.1063/5.0155297. https://ieeexplore.ieee.org/abstract/document/9789265
9. Schubel PJ, Johnson MS, Warrior NA, Rudd CD. Characterisation of thermoset laminates for cosmetic automotive applications: Part III - Shrinkage control via nanoscale reinforcement. Compos Part A Appl Sci Manuf. 2006;37(10):1757-1772. doi:10.1016/j.compositesa.2005.09.014. https://www.sciencedirect.com/science/article/pii/S1359835X0500374X
