AccuFiz infrared interferometers deliver precise measurements of IR optics and precision surfaces. These infrared laser interferometers are well-suited for measuring concave, convex, and afocal IR components, along with infrared telescopes and lens systems. Their capability to capture high slopes enables the measurement of aspherical optics without needing a holographic element.
AccuFiz IR interferometers come equipped with standard features, including a touch-screen remote and fully motorized controls. The optional dynamic measurement mode allows for measurements to be taken despite vibration and air turbulence without needing an air table. Only AccuFiz offers Smart Zoom™ to guarantee precise lateral resolution across the full 1×–10× zoom range. Diffraction-limited imaging provides exceptional resolution, especially at mid-spatial frequencies, enabling the detection of polishing artifacts that other interferometers may miss.
AccuFiz NIR. Image Credit: 4D Technology
Operates at 1.053 or 1.064 μm

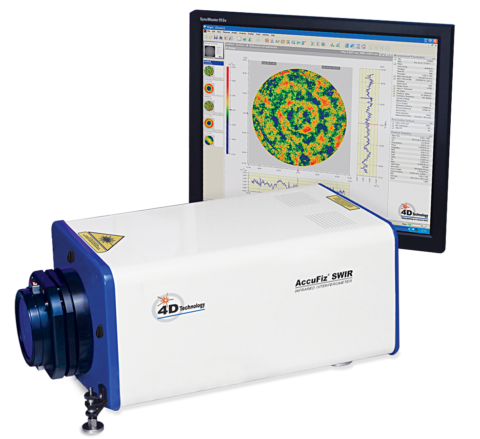

AccuFiz SWIR. Image Credit: 4D Technology
Operates at 1.55 µm
AccuFiz IR Specs
Source: 4D Technology
| . |
. |
| Configuration |
Fizeau interferometers |
| Acquisition |
Temporal phase shifting, optional vibration-immune dynamic |
| Wavelength |
NIR: 1.053, 1.064 µm
SWIR: 1.55 µm |
| Aperture |
NIR: 100 mm (4 in), 150 mm (6 in)
SWIR: 100 mm (4 in) |
| Camera |
NIR: 4MP, 12-bit (optional 2400 x 2400 at 1.064 µm)
SWIR: 1024 x 1024 |
| Controls |
Remote control focus, zoom |
| Zoom |
NIR: Continuous 1–10X with pan;
SWIR: Continuous 1–10X with pan; |
| Software |
4Sight™ Focus included |
| Size |
NIR: 100 mm aperture: 51.4 cm (20.2 in) long; 150 mm aperture: 76.2 cm (30 in) long
SWIR: 51.4 cm (20.2 in) long |
| Reflectivities |
1 – 100% |

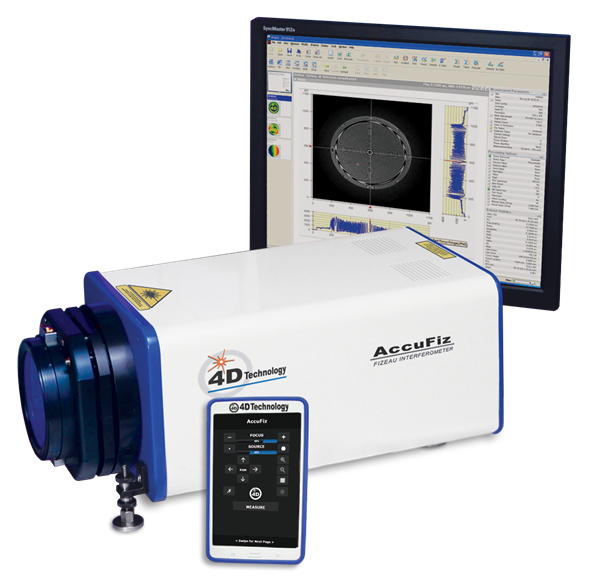

Full Range of Options and Accessories
The AccuFiz family is designed for flexibility, offering a variety of laser sources, aperture sizes, mounting components, and accessories.
Image Credit: 4D Technology

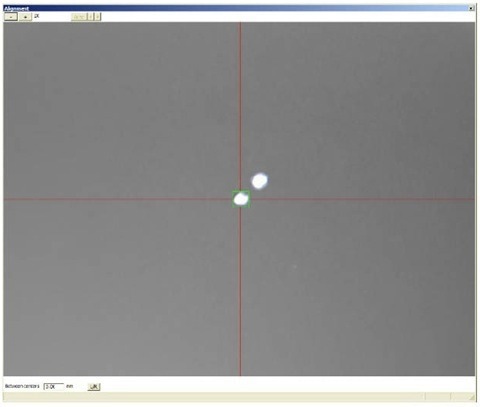

Simplified Alignment
Quickly set up with the visible alignment beam and dual-spot camera-based alignment aid.
Image Credit: 4D Technology
Image Credit: 4D Technology

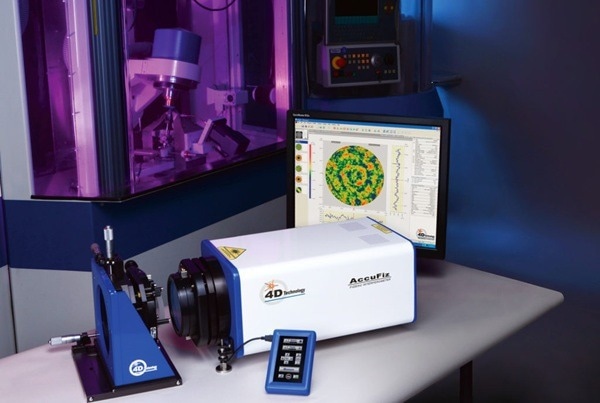

Fizeaus and Optical Production
AccuFiz IR Fizeaus are ideal for optics manufacturing.
- Qualify shape and mid-spatial frequencies
- Measure flats, spheres, cubes, and mirrors
- Conduct wavefront transmission quality measurements
- Offer fast and precise measurements
- Suitable for use in Aerospace, Semiconductor, and Optics industries
Image Credit: 4D Technology
