The difference between mirrors and lenses lies in how they interact with light. When light meets a surface, it experiences two key phenomena: reflection and refraction. Mirrors create images by reflecting light that strikes their surface, while lenses form images by refracting light as it passes through them.
Mirrors: A Reflective Perspective
A mirror, mechanically defined, is a sheet of substrate or metal that reflects incoming light. The polished side of a mirror, frequently coated with a layer of metal amalgam or made from naturally reflective metals, enables clear reflections of objects in front of it.
Mirrors have a wide range of practical applications in everyday life, from personal grooming to specialized uses such as solar cookers, security systems, periscopes, flashlights, home décor, and telescopes. Different types of mirrors, including plane mirrors and spherical mirrors (concave and convex), each with unique properties, are utilized across various fields.

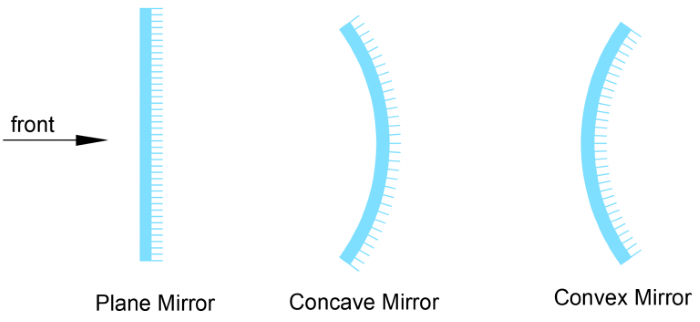

- Plane Mirror: Flat reflective surface reflecting erect and virtual images.
- Spherical Mirror: Curved reflective surface, divided into concave (inward-facing) and convex (outward-facing) mirrors.
Uses of Mirrors Include:
- Solar Cookers: Mirrors that focus sunlight to generate heat for cooking.
- Security and Law Enforcement: One-way mirrors used for surveillance and monitoring.
- Periscopes: Mirrors for observation in submarines and other applications.
- Torch Lights: Mirrors that amplify and direct light in torchlights and flashlights.
- Telescopes: Mirrors that concentrate reflected light to magnify distant objects.
Image Credit: Shanghai Optics
Lenses: Bending Light for Vision
A lens, usually fabricated from glass or transparent material, refracts light that passes through it. Lenses have two curved surfaces, and the bending of light through these surfaces makes images appear smaller or larger. Like mirrors, lenses may be classified according to their curvature. Convex and concave lenses are the primary types.
Lens Use Cases Include:
- Telescopes and Microscopes: Magnifying objects for observation purposes.
- Spectacles and Contact Lenses: Tailor-made to enhance vision.
- Torchlights and Flashlights: Focusing or scattering light beams.
- Projectors: Concentrating light to project images.

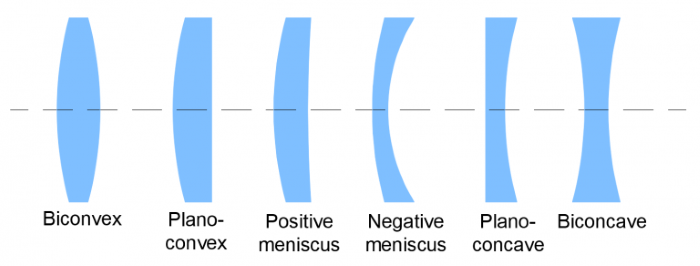

Types of Lenses:
- Convex Lens: Outward-curving surface resulting in the convergence of light beams.
- Concave Lens: Inward-curving surface resulting in the divergence of light beams.
Image Credit: Shanghai Optics
Significant Differences Between a Mirror and a Lens:
Mirrors reflect light using a coating applied to one side, while lenses work by bending and manipulating light through refraction. Lenses are categorized as simple or compound, with concave and convex variations based on their refractive properties.
Source: Shanghai Optics
| Parameter |
Mirror |
Lens |
| Definition |
The mirror, composed of glass with a reflective silvery backing on one side, forms an image through reflection on a single surface. |
The lens is a clear material that generates images through refraction on one of its two surfaces. |
| Transparency |
Reflective |
Transparent |
| Light Interaction |
Mirrors reflect light |
Lenses refract light. |
| Curvature |
It can be plane or curved. |
Always curved at one or two surfaces. |
| Number of Surfaces |
Mirrors have one reflective surface |
Lenses have two reflective surfaces |
Laws
Followed |
Laws of reflection |
Laws of refraction |
| Types |
There are two types: concave
and convex |
There are six types of lenses. |
| Focal point |
Plane mirror has no focal point |
It has 2 focal points for each type of lens |
| Manufacture |
From glass or metal |
From glass or plastic |
To conclude, the fundamental differences between mirrors and lenses lie in their design and how they interact with light. Mirrors reflect light on a single surface, while lenses refract light through two surfaces to manipulate its path. Despite these differences, both are essential components with applications across various fields.
