Beam splitters are used in a wide range of fields, from teleprompters to robotics, impacting the technologies that we rely on daily. These seemingly simple devices are essential for the operation of various high-tech gadgets. This article explains how beam splitters work, their types, and their applications.
Understanding the Beam Splitter
At its essence, a beam splitter is a device that can direct light into two unique paths. Most beam splitters are fabricated from glass cubes. When a light beam comes into contact with these cubes, half of it enters the glass, while the other half is reflected.
In physics, beam splitters have been crucial for experimentation, helping to measure parameters such as the speed of light. In real-world use cases, beam splitters are the underdogs of fiber optic telecommunications, guaranteeing efficient high-speed internet connections. They are also crucial for optical devices like microscopes, telescopes, cameras, and binoculars.

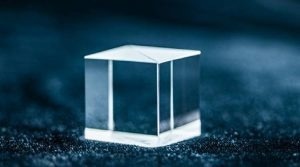

Laser Polarizing Beamsplitters Cube. Image Credit: Shanghai Optics
Narrowband Beamsplitter Cube. Image Credit: Shanghai Optics
Use Cases Showcasing the Importance of Beam Splitters
Teleprompters
Beam splitters form a key part of teleprompters and play a critical role in the media industry. They allow performers, politicians, YouTubers, and others to read scripts without losing eye contact with viewers.
This is especially important for those who find it difficult to memorize a script, as it means that they can concentrate more on their delivery and body language, ensuring to project confidence and composure.
At the heart of a teleprompter lies a piece of beam splitter glass, which displays scripts from a tablet, phone, or laptop, often accompanied by a black shroud to improve visibility.
Holograms
Beam splitters are also essential for generating holograms and similar optical illusions. They segregate light from an object, with one part reflecting off of the beam splitter and the other passing through. A black background is key for making a hologram stand out.
Interferometry
Beam splitters are also key in interferometry. They separate a single beam into two parts, with one reflecting off of a surface. By merging the reflected light with the first beam, distance measurements can be made via the generation of interference patterns.
Diverse Use Cases
Aside from the above-mentioned applications, beam splitters are also used in numerous domains such as engineering, robotics, science, security cameras, smart mirrors, fiber optics, filmmaking, laser systems, and more.
Understanding Beam Splitter Coatings
Beam splitter coatings are applied to optical surfaces to enhance light reflection, transmission, and polarization. These coatings minimize light loss through the glass, improving system efficiency. Thin films of metals and oxides are commonly used, offering a wide range of materials and thicknesses to achieve the optimal balance between reflection and refraction.
In addition to boosting performance, coatings protect the optical equipment's surfaces, extending the lifespan of the beam splitter and its components.
Exploring Common Types of Beam Splitters
- Cube Beam Splitter: Cube beam splitters are built by stacking two triangular glass prisms and bonding them with epoxy or urethane resins. The resin layer’s thickness can be changed to regulate the power-splitting ratio for certain wavelengths. Moreover, thin metal or dielectric coatings can be added to split the beam based on polarization or wavelength.
- Plate Beam Splitter: Plate beam splitters, also called dielectric mirrors, comprise thin optical glass with coatings on either side. The mirror coating is applied at a 45° angle of incidence, separating the light into equal parts of reflection and transmission. These beam splitters may also be made from IR materials such as calcium fluoride (CaF2) and potassium bronmide (KBr), which serve various wavelength spectrums.
- Non-Polarized and Polarized Beam Splitters: Non-polarizing beam splitters maintain the polarization of light while splitting it in a predefined ratio, making them ideal for use in applications that demand preserved polarization. For comparison, polarizing beam splitters split light into S-polarized and P-polarized beams, which can be helpful for optical isolation and other use cases.
- Dichroic Beam Splitter: Dichroic beam splitters separate light according to wavelengths and are typically utilized in use cases that involve fluorescence, tailored laser beam combining, and beyond.
- Other Types of Beam Splitters: Pellicle beam splitters, geometric splitting beam splitters, polka dot beam splitters, beam splitters with multiple outputs, and fiber-optic beam splitters serve different needs and preferences in diverse use cases.
Use Cases of Optical Beam Splitters
Beam splitters are essential in interferometry, where they facilitate distance measurement by creating interference patterns. They are also widely used in quantum optics research and development.
In fluorescence spectroscopy, dichroic beam splitters filter light by wavelength, allowing only emitted fluorescence to reach the detector. Plate-type beam splitters play a critical role in camera-based imaging systems, enabling co-axial illumination.
Imaging systems frequently utilize hot or cold mirrors to separate infrared light from visible light, protecting sensors from potential thermal damage. Additionally, dichroic filters help reduce red light in white illumination, resulting in a bluer light source.
Conclusion
Beam splitters are versatile and indispensable tools used across a wide range of fields, including media, holography, telecommunications, and scientific research. Designed in various types to meet specific requirements for intensity, polarization, and wavelength, they exemplify their critical role in modern technology.
Shanghai Optics is a trusted provider of high-quality custom beam splitters, catering to diverse and specialized needs.
