Manipulating light in an optical setting is heavily contingent on innovations such as Anti-Reflection (AR) coatings. These coatings limit Fresnel reflection to improve system throughput and reduce hazards that reflections may cause. These coatings are crucial for various applications as they help ensure optimal light transmission and overall system stability.

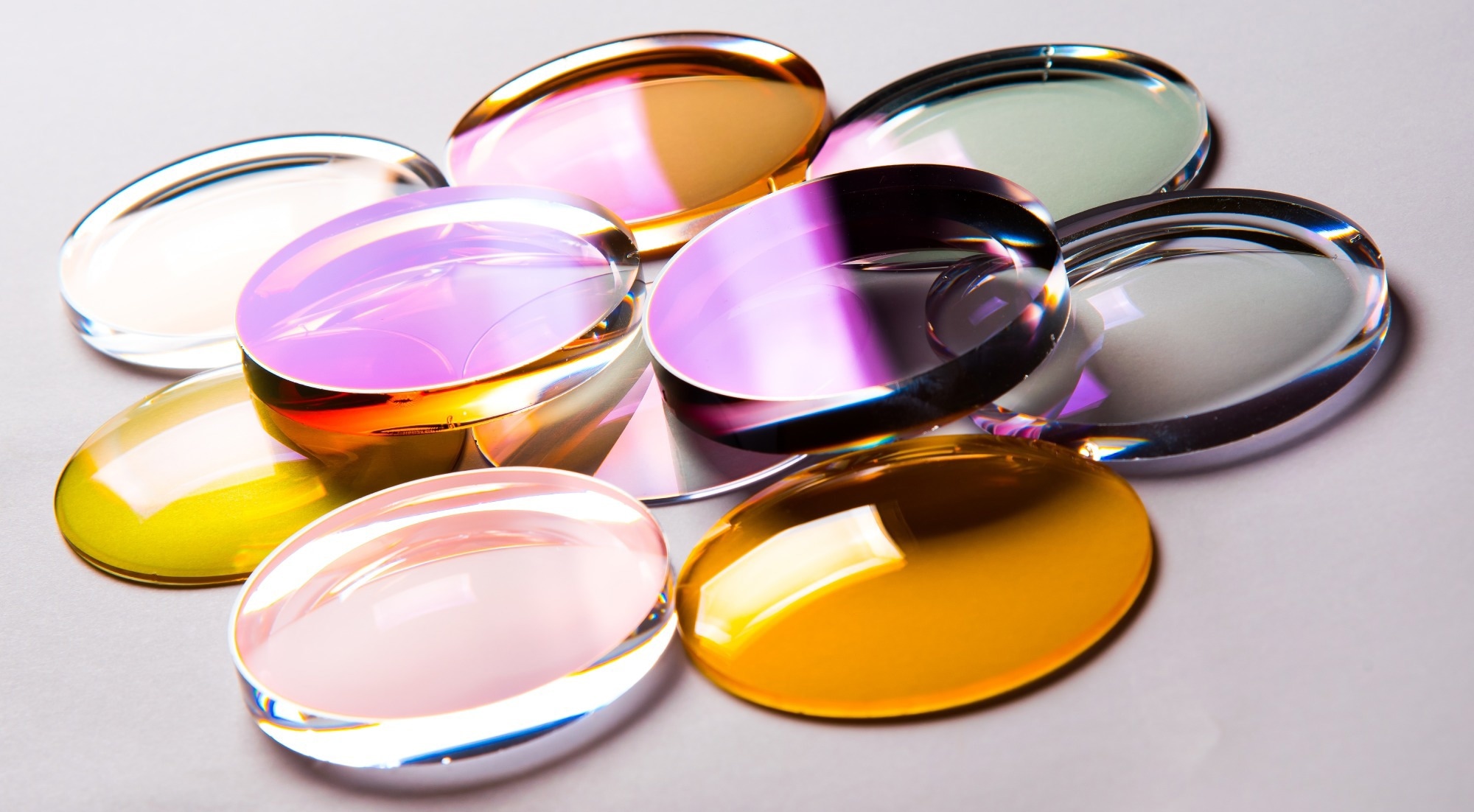

![Spectacle lenses with anti-reflective and photochromic coating.](https://d36nqgmw98q4v5.cloudfront.net/images/Article_Images/ImageForArticle_2645_17210408222479191.jpg)
Image Credit: Kryuchka Yaroslav/Shutterstock.com
Fresnel Reflection and Its Impact
At each interface between air and uncoated glass, around 4 % of light is lost due to Fresnel reflection. This reduces overall transmission to 92 %. This decrease underscores the necessity of AR coatings in ensuring efficient light transmission is sustained across a diverse range of applications.
AR Coatings
AR coatings introduce a 180° relative phase shift between reflected beams, resulting in destructive interference and limiting undesired reflections. For efficient interference, the coating’s optical thickness must correspond with the design wavelength.
Composition and Characteristics: AR coatings come in various forms, from simple single-layer designs to complex, multi-layer structures for intended bandwidth adjustment. However, their practicality is greatest at or near the intended design wavelength.
Reflectivity and Tolerances: The intended purpose of using AR coatings is to keep reflectivity under 0.25 %, with small allowances for shifts in the design wavelength without undermining performance.
Broadband Anti-Reflection (BBAR) Coating
Compared to conventional AR coatings, BBAR coatings are more dynamic and versatile over an extended range of wavelengths. While BBAR coatings may not achieve the exact same low reflectivity values, they are extremely valuable for applications involving broad-spectrum light sources and lasers that emit multiple wavelengths.
Versatility and Applications: BBAR coatings are frequently used for the lenses and windows of optical components, especially in systems where a single narrow-band AR coating may not be sufficient. They also play a crucial role in minimizing any reflections in laser and nonlinear crystals.
Considerations and Performance: Compared to coatings optimized for specific wavelengths, BBAR coatings offset improved performance over a broad wavelength range with slightly higher reflectivity values. This compromise is necessary for applications that require versatility.
Applications Across Wavelength Ranges
BBAR coatings accommodate a variety of wavelength ranges, including UV, visible, NIR, and SWIR, granting access to customizable solutions for various optical requirements.
Source: Shanghai Optics
UV (250-380 nm) |
Our UV broadband anti-reflection coating R(avg) ≤ 1 % @ 250 – 425 nm |
VIS (380-750 nm) |
Our visible broadband anti-reflection coating R(avg) ≤ 0.5 % @ 350 – 750 nm |
NIR (750-900 nm) |
Our NIR broadband anti-reflection coating R(avg) ≤ 0.7 % @ 750 – 900 nm |
SWIR (900-1700 m) |
Our SWIR broadband anti-reflection coating R(avg) ≤ 1.0 % @ 900 – 1700 nm |
A good understanding of AR and BBAR coatings is essential for implementing them to optimize optical system performance and reduce undesirable reflections across a diverse range of applications.
As technology continues to improve, the customizable design of coatings and their capability to boost light transmission contributes significantly to the success of optical engineering across various industries.
![](https://d36nqgmw98q4v5.cloudfront.net/images/Article_Images/ImageForArticle_2645_17210407773292398.png)
This information has been sourced, reviewed and adapted from materials provided by Shanghai Optics.
For more information on this source, please visit Shanghai Optics.
