Choosing the correct microscope for a use case is a key decision that requires a deep understanding of the task and the available instruments. This article guides you through the different types of microscopes and discusses critical factors to facilitate an informed decision-making process.
Understanding the Different Types of Microscopes
- Compound Microscopes: Compound microscopes utilize different lenses for high magnification (40x to 1000x) and provide sophisticated imaging techniques such as phase contrast. They come with monocular, binocular, or trinocular heads and are appropriate for thin or transparent specimens.
- Stereo Microscopes: Stereo microscopes, also called dissecting microscopes, offer three-dimensional views of specimens. They provide lower magnification (10x to 50x), long working distances, broad fields of view, and flexible illumination for tasks such as dissection and circuit board work.
- Measuring Microscopes: Built for precise measurements, these microscopes are invaluable in industries that require high precision, like electronics and metallurgy. They provide precise measurements in both two and three dimensions, alongside advanced imaging and digital abilities.
- Digital Microscopes: Digital microscopes combine traditional microscopy with modern digital technology, making it easier to view, analyze, and share microscopic images. They support real-time collaboration, advanced image analysis, and improved visualization with features like zoom and brightness control.
Choosing the Right Microscope Objective
- Magnification Matters: Consider the magnification range that you require for your specific application (4X to 100X). Higher magnification offers greater resolution but a smaller field of view, while lower magnification provides a larger field of view.
- Choosing the Optimal Immersion Medium: Choose between dry and immersion objectives depending on whether a liquid medium is required between the specimen and the objective lens. Immersion objectives, which use liquids like oil, offer higher Numerical Aperture (NA) and improved resolution.
- The Crucial Conjugate Distance: Understanding conjugate distance is essential when selecting microscope objectives. Finite conjugate objectives are a budget-friendly choice for simple microscopy systems, while infinite-corrected objectives excel in research-grade applications that involve additional optical components.
- The Significance of NA: NA is a key factor that determines an objective’s ability to gather light and resolve fine details. Higher NA values deliver better resolution, enabling sharper and more detailed images.
- Aberration Correction for Optical Precision: Optical aberration correction is an important consideration when choosing an objective lens. Options like Achromat, Plan Achromat, Plan Apochromat, and Super Apochromat objectives offer varying levels of correction to suit different applications and budgets.
- The Crucial Working Distance: Working distance (WD) is the gap between the front lens of the objective and the focused object. Selecting objectives with suitable working distances is vital, particularly for applications requiring object placement within specialized chambers.

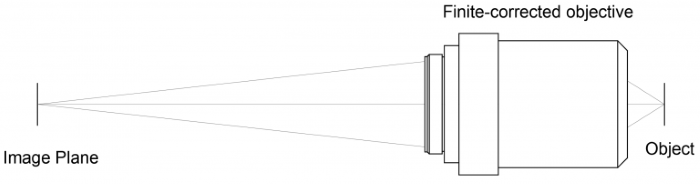

Figure 1. Finite Conjugate Objective. Image Credit: Shanghai Optics

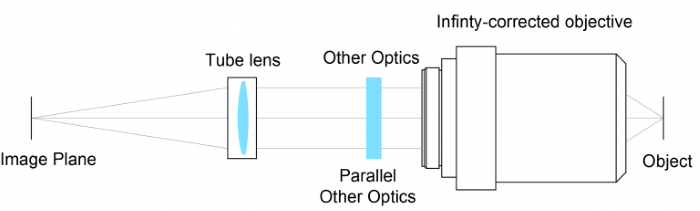

Figure 2. Infinity-Corrected Objective in an Infinite Conjugate System. Image Credit: Shanghai Optics
In conclusion, microscopy systems are indispensable tools across scientific research, industry, and laboratories. The objective lens plays a crucial role, and selecting the right one requires careful consideration of factors like conjugate distance, numerical aperture, magnification, working distance, immersion medium, and aberration correction.
Shanghai Optics offers a spectrum of microscope solutions to meet different needs while ensuring optimum performance and image quality.
