A recent article in Advanced Photonics Research presents a mid-infrared dual-comb spectroscopy (DCS) system that eliminates the need for external photodetectors. The researchers developed a self-detecting setup based on high-speed, injection-locked quantum cascade lasers (QCLs).
This approach simplifies the system architecture while improving spectral resolution, bandwidth, and signal-to-noise ratio (SNR). The goal was to improve stability and reduce complexity in DCS platforms for sensing and spectroscopy.

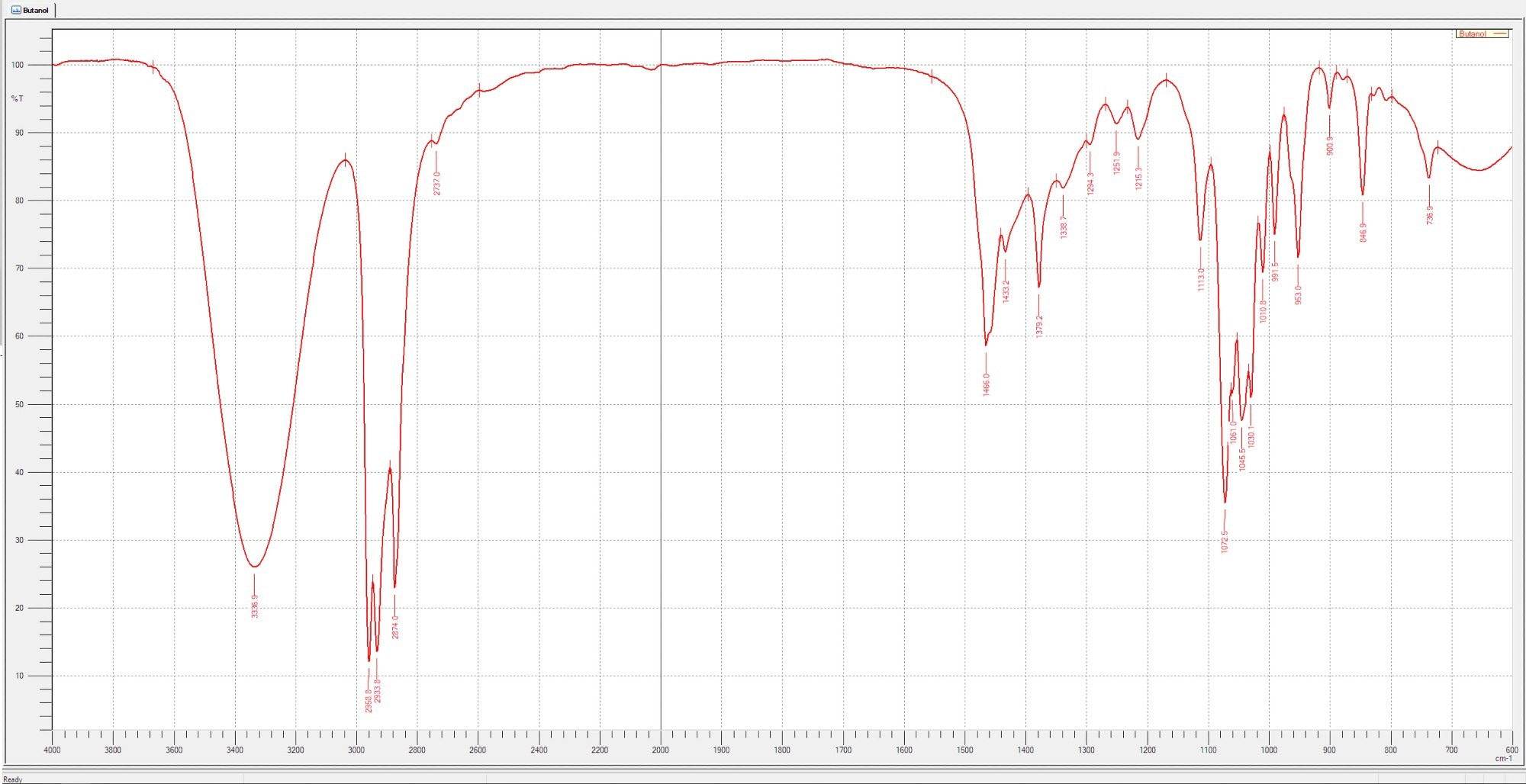

Image Credit: M. Schauer/Shutterstock.com
Advancements in Mid-IR Dual-Comb Spectroscopy
DCS is an advanced optical measurement technique that uses two frequency combs with slightly different repetition rates to acquire spectral data without moving parts. It is well-suited for mid-infrared (mid-IR) wavelengths, where many molecules have characteristic absorption features important for chemical and environmental sensing.
Optical frequency combs (OFCs) provide evenly spaced, phase-coherent lines that support precise measurements across a range of applications, including metrology and communications.
QCLs have emerged as key mid-IR sources due to their broad spectral bandwidth, rapid gain recovery, and capacity to generate frequency combs. Their integration into existing DCS systems has the potential to significantly improve measurement speed and precision.
However, traditional DCS setups rely heavily on high-bandwidth external photodetectors, increasing system complexity and cost. This study addresses these limitations by integrating the detection function within the QCL structure itself.
About this Research: Investigating Self-Detecting Dual-Comb
This paper introduced a compact self-detecting DCS system utilizing high-speed, dispersion-engineered QCLs operating near 4.6 μm. This system is based on a hybrid-monolithic-integrated waveguide (HMIWG) structure that supports efficient radio frequency (RF) injection locking and group velocity dispersion (GVD) engineering.
The researchers designed a segregated-coplanar waveguide integrated with a multimode-coupled waveguide to enable high-speed RF signal injection. This architecture allows the DCS system to self-detect multiheterodyne signals without fully relying on external photodetectors, thereby simplifying the experimental setup.
The study characterized the HMIWG devices under various conditions, including continuous-wave (CW) operation at different controlled temperatures. This was achieved using a water-cooling platform, a thermoelectric cooler, light-current-voltage (L-I-V) measurements, and microwave rectification techniques to evaluate device behavior.
Key Findings: Impacts of Leveraging Self-Detecting Dual-Comb
The outcomes demonstrated that the self-detecting DCS system achieved a broad spectral coverage of 68 cm⁻¹ with a narrow comb tooth linewidth of approximately 10 kHz without needing external detectors or numerical post-processing.
The use of RF injection locking enabled high-speed photodetection directly from the QCLs, providing a broadband RF bandwidth of up to 40.20 GHz and stable operation even under optical feedback.
The HMIWG device delivered a continuous-wave output power of approximately 700 mW at 10 °C, with a threshold current density of 2.05 kA/cm2. The observed -3 dB bandwidth of 16.2 GHz surpasses conventional designs, demonstrating superior performance.
The multiheterodyne signals showed a high SNR of 25-40 dB, much better than traditional DCS systems. Beatnote linewidths were measured below 1 kHz, indicating strong intermode coherence and confirming stable frequency comb operation. The system also supported injection locking up to fourth-order harmonic states, indicating tunable spectral bandwidth and high robustness.
Practical Applications in Molecular Sensing and Beyond
The simplified architecture and performance characteristics make this system well-suited for mid-IR spectroscopy applications. Its high resolution and broad spectral coverage enable accurate identification of molecular species in complex samples. This is particularly relevant in gas sensing, chemical analysis, and biomedical diagnostics.
The high-speed detection capability allows real-time monitoring of dynamic changes, such as atmospheric gas composition. The compact, self-contained design also lowers system cost and facilitates integration into field-deployable platforms. Potential extensions include use in telecommunications and quantum systems, where frequency coherence and compactness are also essential.
Download your PDF copy now!
Conclusion and Outlook
This work demonstrates a self-detecting mid-IR dual-comb system based on injection-locked QCLs and integrated waveguide structures. The system combines dispersion engineering and high-speed RF design to deliver high output power, broad bandwidth, and narrow comb linewidths without the need for external photodetection or signal reconstruction.
Future developments could include integration with external frequency references and further customization for application-specific sensing tasks. These improvements would support the deployment of compact dual-comb platforms for spectroscopy, diagnostics, and monitoring, while expanding their role in precision technologies such as quantum sensing and optical communications.
Journal Reference
Ma, Y., et al. Self-Detecting Mid-Infrared Dual-Comb Spectroscopy Based on High-Speed Injection-Locked Quantum Cascade Lasers. Advanced Photonics Research, 2500062 (2025). DOI: 10.1002/adpr.202500062, https://advanced.onlinelibrary.wiley.com/doi/10.1002/adpr.202500062
