An optical device that electrically regulates the spatial distribution of light amplitude, phase, or polarization is called a spatial light modulator (SLM). It is extensively employed in cutting-edge fields like optical communication, laser beam shaping, and holography.

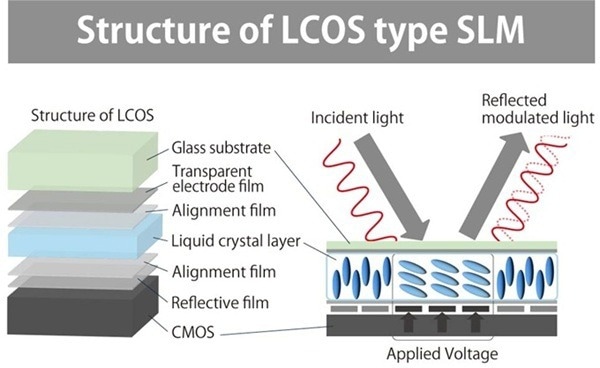

A liquid crystal on silicon (LCOS) micro-display and micro-projection technology is used for LC projectors and rear-projection televisions. LCOS is typically a reflective type LC panel made up of LC on a Si substrate and a reflective layer.
Using semiconductor manufacturing technology, switching components and electric wires for LC driving are integrated on a Si substrate beneath a reflective layer, producing a seamless, high-pixel-resolution image.

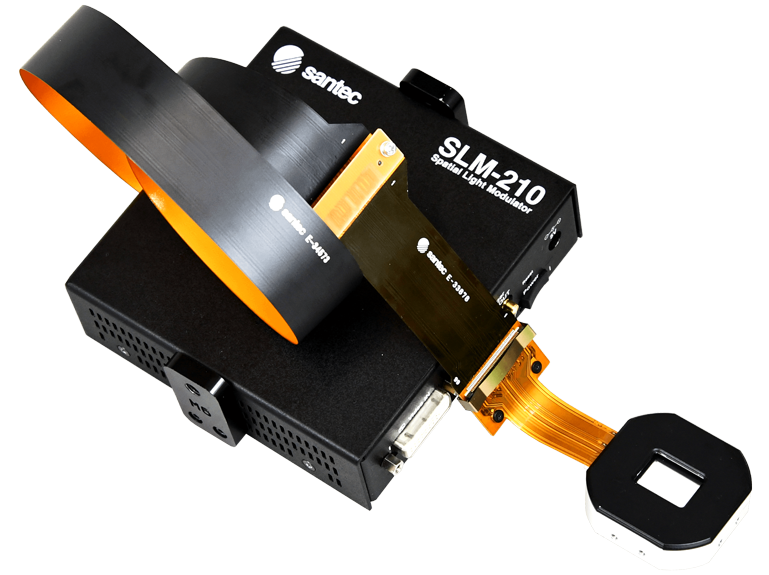

Using proprietary LC materials, Santec has created a novel LCOS device for a range of uses, including fiber optics.
Image Credit: Santec AOC Corporation
Key Features
LCOS module with low flicker and high phase resolution.

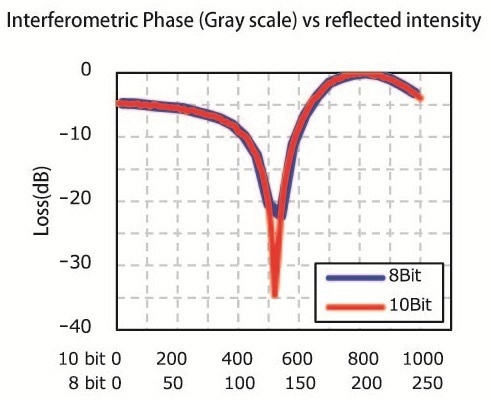

- High resolution of phases 1024 gray levels (10-bit)
- More accurate phase modulation is made possible by high phase resolution.
Image Credit: Santec AOC Corporation

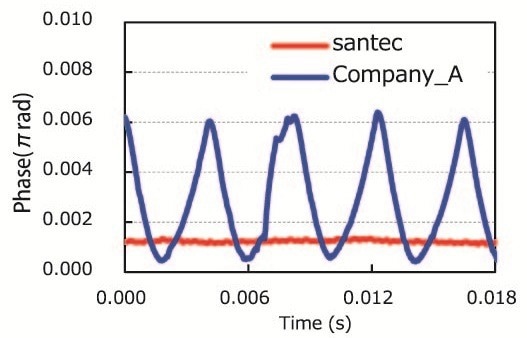

- The highest degree of phase stability in the world under 0.002 π
- The LCOS module's controller is meticulously engineered to reduce fluctuations.
Image Credit: Santec AOC Corporation
Applications
- 3D Holography
- Laser Processing
- Optogenetics
- AR Display Devices
- Optical Vortex
- Beam Shaping / Steering
- Wavefront Correction
- Projection
- Optical Tweezers
- Diffractive Optics
- 3D Printing
- Biosensing
- Laser Marking
- Quantum Computing
Santec's LCOS-SLM is utilized by universities and research institutes worldwide.

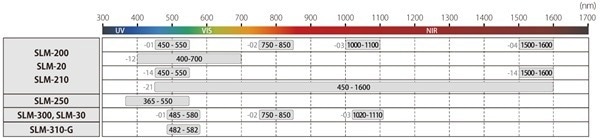

Spatial Light Modulator Series
Image Credit: Santec AOC Corporation
