The MPA-100 is a highly integrated rack mountable variant of pigtailed photo detectors. Multi-channel optical power is measured using MPO or MTP connectors. There are silicon photo detectors for the 850 nm range and InGaAs photo detectors for 1260 - 1610 nm. The observed photocurrent is transformed into a voltage output via a 16-bit multi-channel DAQ interface. The dimensions are (W) 482.6 × (D) 430 × (H) 44 mm.
Features
- Wide-operating wavelength range: 1260 ~ 1610 nm
- Wide-optical input range: –50 ~ –10 dBm
- Multi-channels photo detector arrays up to 80 channels
- Power monitoring and testing at 850 nm SR4, SR10
- Exceptional linearity of +/– 0.6 dB
- Compatible with MPO adapters and high-density MPO and MTP connectors
- Provides 16-bit DAQ voltage output via USB interface
- 1U Size (44 mm) slim design
- Custom models are available upon request

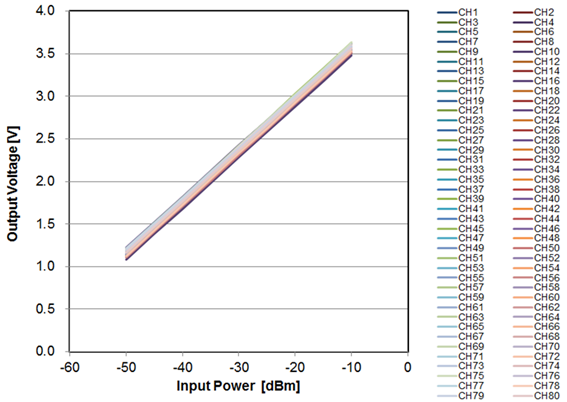

Input Power vs Output Voltage
(Example: MPA-100-10-8-IR-SM-01)
Image Credit: Santec Corporation
Applications
- Testing in Data Communications, Broadband / CATV Networks, and Telecommunication Networks
- Monitoring the interconnections of active optical cables
- Monitoring Data Center Equipment
