By Owais AliReviewed by Lexie CornerApr 11 2025Mass spectrometry is an analytical technique used to identify compounds. It involves ionizing molecules, separating the resulting ions based on their mass-to-charge ratio (m/z), and detecting them to produce a mass spectrum.
This spectrum provides detailed information about a molecule’s molecular weight, structural features, and elemental composition.
This article offers a comprehensive guide to interpreting mass spectrometer graphs and their key features.
Image Credit: S. Singha/Shutterstock.com
Understanding the Mass Spectrum
A typical mass spectrum displays a series of peaks, each representing ionized species derived from the original molecule. The horizontal axis (x-axis) corresponds to the mass-to-charge ratio, while the vertical axis (y-axis) indicates the relative abundance of each ion.
X-axis: Mass-to-Charge Ratio
The x-axis shows the mass-to-charge ratio, typically expressed in atomic mass units (amu) per charge. In most cases, ions carry a single positive charge, so the m/z value directly reflects the fragment’s mass. This parameter helps identify molecular fragments and determine the structural components of the analyte.
Y-axis: Relative Abundance
The y-axis represents the relative abundance of each detected ion, normalized so that the most intense peak (the base peak) is set at 100 %. This provides information on the prevalence and stability of ionized fragments and insights into the preferred fragmentation pathways.
Peaks
Each peak in the spectrum corresponds to a distinct ion, defined by its mass-to-charge (m/z) ratio. The base peak, representing the most intense signal, is standardized to 100 % relative abundance and serves as a reference point.
The arrangement, relative intensities, and spacing of the peaks create a molecular fingerprint that aids in structural elucidation and compound identification.1,2

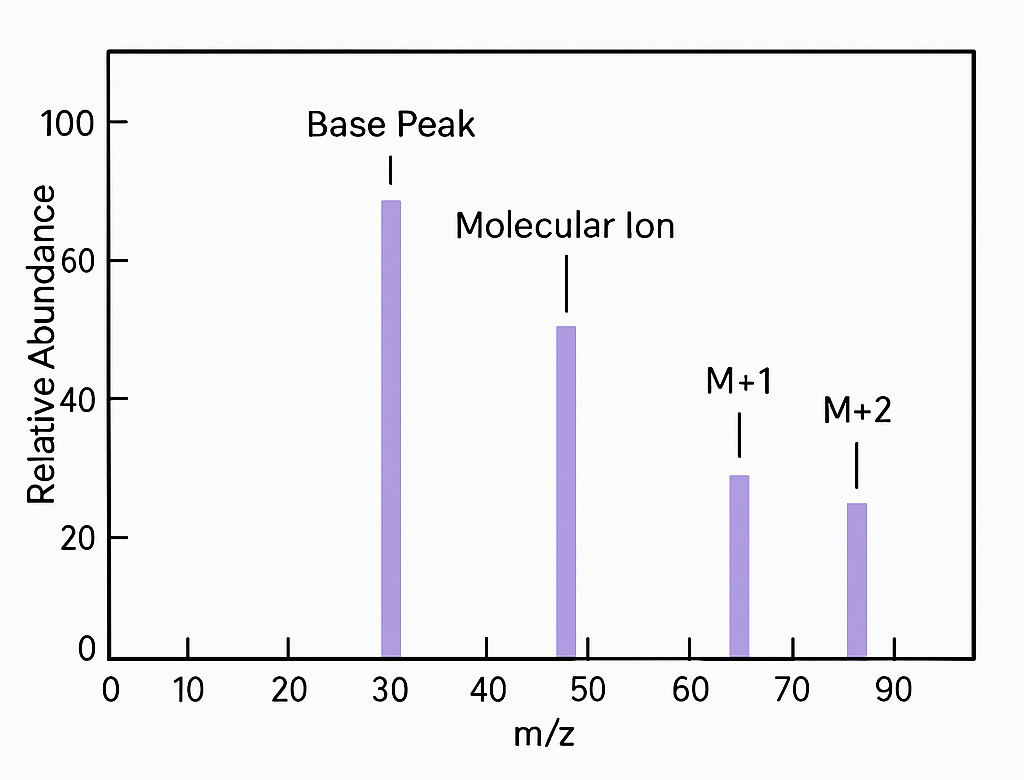

Example of a stylized mass spectrum highlighting key features. The x-axis represents the mass-to-charge ratio (m/z), and the y-axis indicates the relative abundance of detected ions. The base peak (most intense), molecular ion peak, and M+1/M+2 isotopic peaks are labeled. Image generated by ChatGPT (2025).
Key Features of a Mass Spectrum
Mass spectra exhibit characteristic features that help determine a compound’s molecular structure and composition.
Molecular Ion Peak
The molecular ion peak corresponds to the intact molecule that has lost a single electron during ionization, preserving its original atomic composition. This peak appears at an m/z value equal to the compound's molecular weight.
Its visibility depends on the ionization method and molecular stability, often prominent in aromatic or conjugated systems but weak or absent in aliphatic compounds due to extensive fragmentation.
Base Peak
The base peak typically corresponds to a stable fragment ion rather than a molecular ion. It reveals the molecule's preferred fragmentation pathway, offering important clues about its substructures and helping to identify key components of the molecule.
Fragment Ions
Fragment ions appear at m/z values lower than the molecular ion and result from predictable fragmentation mechanisms influenced by molecular structure. These include alpha cleavage near functional groups, McLafferty rearrangements in carbonyl systems, and the loss of small neutral molecules like H₂O, CO, or NH₃.
These patterns assist in identifying functional groups and inferring molecular architecture.
Isotopic Peaks
Isotopic peaks arise from naturally occurring isotopes in the molecule, such as ¹³C, ³⁷Cl, or ⁸¹Br.
For example, carbon-13 generates M+1 peaks, typically at 1.1 % of the intensity of the molecular ion per carbon atom, when compared to the standard C-12 isotope. These signatures indicate the presence of specific halogens and contribute to elemental confirmation.2,3
Download your PDF copy now!
How to Interpret a Mass Spectrum
There are four steps to interpret the mass spectrum:
Step 1: Locating the Molecular Ion Peak
The first step in mass spectrum interpretation is identifying the molecular ion peak to determine the compound's molecular weight. This peak, typically observed at the highest m/z value (excluding isotope peaks), corresponds to the intact molecule that has lost an electron during ionization.
In some cases, the molecular ion may be weak or absent, especially for compounds prone to fragmentation. In such instances, alternative ionization techniques like chemical ionization (CI) may be necessary to help confirm the molecular weight.
Step 2: Analyzing Fragmentation Patterns
After identifying the molecular ion, the next step is to analyze the fragmentation patterns, which occur when bonds in the molecule break. These fragment ions provide structural information and help identify functional groups present in the compound.
Common fragmentation pathways include:
-
a) Alpha Cleavage
Alpha cleavage occurs adjacent to functional groups, such as carbonyl groups in aldehydes and ketones. This results in the formation of characteristic fragments. For instance, in 2-butanone, a prominent peak at m/z 43 corresponds to the loss of a methyl group through alpha cleavage.
-
b) McLafferty Rearrangement
The McLafferty rearrangement is a hydrogen transfer process through a six-membered transition state. It is commonly seen in ketones, aldehydes, and carboxylic acids with gamma-hydrogens. This rearrangement produces distinctive fragment ions that aid in identifying these compound classes.
-
c) Loss of Neutral Molecules
Many compounds fragment by losing neutral molecules like water (18 amu), carbon monoxide (28 amu), or ammonia (17 amu). These losses result in peaks at specific m/z values below the molecular ion. This assists in the identification of functional groups present in the molecule.
Step 3: Analyzing Isotope Patterns
To read isotope peaks on a mass spectrum, observe the M+1 and M+2 peaks. The M+1 peak indicates the presence of carbon-13, typically around 1.1 % of the intensity of the molecular ion per carbon atom.
For elements like chlorine or bromine, the intensity ratio between the M⁺ and M+2 peaks will help confirm their presence, with chlorine showing a 3:1 ratio and bromine a 1:1 ratio. The relative intensity and pattern of these peaks provide clues about the elemental composition of the molecule.
Step 4: Determine the Molecular Formula
The molecular formula can be derived from the molecular ion's exact m/z value, especially when using high-resolution mass spectrometry. This information, combined with the degree of unsaturation (which indicates the number of rings and double bonds), helps refine structural possibilities.
Additional techniques, such as infrared or nuclear magnetic resonance spectroscopy, can confirm the molecular formula and provide a clearer picture of the compound's structure.
Step 5: Compare with Reference Databases
Once a potential molecular structure is proposed, the mass spectrum should be compared with reference spectra from databases like the NIST Mass Spectral Library. Database searches can provide a quick comparison based on peak positions and intensities.
However, when analyzing novel compounds or complex mixtures, manual verification through careful examination of fragmentation patterns and isotope analysis is essential for confident identification.2,4,5
Common Mistakes and Troubleshooting
Misidentification of the Molecular Ion
Misidentifying the molecular ion can occur when its peak is weak or absent, often leading it to be mistaken for a fragment peak. This issue is especially common in alcohols, amines, and highly branched compounds.
It can be avoided by using complementary ionization techniques and applying the nitrogen rule, which helps confirm the molecular mass.
Overlooking Isotope Patterns
Neglecting isotope patterns can result in missed elemental information and potential misidentification of compounds containing distinctive isotopic elements.
For example, the natural abundance of isotopes creates predictable patterns (e.g., chlorine's M+2 peak) that serve as diagnostic tools for elemental composition.
Overlooking these patterns, particularly for halogenated compounds or those containing sulfur, leads to incomplete structural characterization and potential misidentification.
Misinterpreting Fragment Peaks
Incorrect interpretation of fragmentation peaks leads to structural misassignments. This can be avoided by considering common fragmentation mechanisms, neutral losses, and rearrangement of ions.
A systematic approach to peak analysis, along with the recognition of diagnostic peaks, helps ensure accurate compound identification.
Instrumentation and Sample Preparation Issues
Technical factors, including poor instrument calibration, sample contamination, and inappropriate analysis parameters, can generate misleading spectral data.
For example, calibration drift may lead to incorrect m/z values, causing misidentification of peaks. Sample contamination can introduce unwanted signals, distorting the interpretation of the spectrum. Improper resolution settings may fail to separate closely spaced peaks, complicating accurate structural analysis.
Interpreting mass spectrometry data requires careful analytical judgment. A systematic approach that combines spectral analysis, chemical knowledge, and complementary techniques is essential for reliable compound identification and characterization.2,6
