This is where the Fraunhofer Institute for Laser Technology ILT comes into play. Indeed, state-of-the-art laser technology can address many of these challenges: Laser-based manufacturing and measurement technologies enable industries to produce complex parts as well as lighter and more powerful components faster, more flexibly while also saving resources. Processes such as laser powder bed fusion (LPBF) and laser material deposition (LMD) can be used to efficiently produce or repair high-performance components for aircraft, launch systems and satellites.
The basic patent for LPBF, the metallic 3D printing process developed at Fraunhofer ILT, forms the basis for today's prototype construction and production of functionally optimized components in the aerospace industry. With it, development cycles can be drastically shortened. The path from CAD model to prototype now only takes a few days – which used to take several months – while reducing costs at the same time. Design engineers have more freedom and can test different variants in parallel.
"Wherever tailor-made, highly complex components are required, additive manufacturing can fully exploit its advantages in terms of flexibility," explains Dr. Tim Lantzsch, head of the Laser Powder Bed Fusion Department at Fraunhofer ILT. "In the aerospace industry, additive manufacturing offers enormous opportunities to optimize components while reducing weight and material usage."

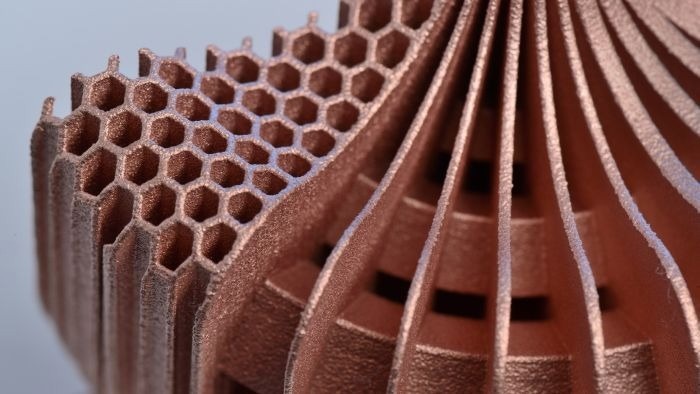

Fraunhofer ILT is also continuing to develop LPBF for copper materials, another example of how the institute is advancing additive manufacturing (AM) for the industry. Since it has such high thermal conductivity, copper is ideal for components that have to withstand extreme thermal loads, such as combustion chambers in rocket engines.
The LPBF team at Fraunhofer ILT has extended the process limits for copper alloys by specifically using green laser radiation to process GRCop42 (CuCrNb). With this development, they can produce high-density, thin-walled structures with optimized thermal management. Such structures have a decisive advantage for space applications, which require durable components manufactured more efficiently and at reduced costs.
LMD is another established AM process for manufacturing components with high precision and optimum material properties. In the ENLIGHTEN project (European iNitiative for Low cost, Innovative & Green High Thrust ENgine), LMD is used to manufacture components with optimized topology, reduced weight and maximum resilience. "The special thing is that we are significantly improving the speed and cost-effectiveness of manufacturing new generations of rocket nozzles thanks to the diverse possibilities of LMD technology. Apart from its large installation space, the design under investigation has exceptionally filigree and thin-walled cooling channels, which can only be manufactured with conventional production routes at great expense," explains Dr. Thomas Schopphoven, head of the Laser Material Deposition Department at Fraunhofer ILT.
LPBF is also increasingly being used to manufacture structural aircraft components that have high strength, but need less material. This process enables users to produce lightweight components that improve the efficiency of modern aircraft. In addition, AM contributes to the efficient repair and maintenance of aerospace components. With LMD, damaged components can be replaced in a targeted manner – an important step towards lean supply chains, sustainability and cost reduction.
Lightweight Construction and Hybrid Materials: New Joining Technologies for Stable, Lightweight Components
Lower fuel consumption, lower emissions and increased payloads; lighter and more stable structures are key aspects toward developing more efficient aircraft and space systems. Hybrid materials that combine plastics and metals offer a promising solution. To ensure that these materials can be joined reliably, Fraunhofer ILT has developed joining technologies – e.g., laser structuring for plastic-metal hybrid components – that generate a mechanically resilient and long-term stable connection. In this process, the metal surface is first structured with a laser to create micropores, which are then filled with plastic, creating a particularly strong and resistant bond.
"Thanks to precise laser structuring, we can significantly improve the adhesion between metal and plastic and develop hybrid components that are both lighter and mechanically more robust," explains Dr. Alexander Olowinsky, head of the Joining and Cutting Department at Fraunhofer ILT. This process makes it possible to produce metal-plastic joints that have the necessary structural strength for use in wings, fuselage structures and engine components.
Laser transmission welding for fiber composites is also an important innovation for modern lightweight construction. Here, the joining zone absorbs the laser beam, allowing heat-resistant plastic components to be securely joined to fiber composites. The method improves the mechanical strength and service life of these materials while reducing their manufacturing costs. "The advantages of processing hybrid materials with laser technology are weight savings, higher strength and durability of the joints, cost savings through low-maintenance joining processes and laser-based repair techniques," summarizes Olowinsky.
The laser institute is also conducting research on LMD with aluminum alloys. "As aluminum has a high thermal conductivity, welding is traditionally a challenge," says Thomas Schopphoven. "The adapted LMD process can generate high-strength, precise weld seams that do not place unnecessary stress on the material. This technology is particularly suitable for weight-saving structural elements in aircraft and spacecraft." Thanks to these developments, Fraunhofer ILT is helping to make the aerospace industry more efficient, sustainable and economical.
Laser Technology for Satellite and Atmospheric Research
The precise recording of atmospheric data and the continued development of satellite-based technologies are essential for modern communication systems, climate research and earth observation. Laser systems offer considerable advantages over conventional methods: They make it possible to selectively measure specific molecules at high-resolution, to precisely determine air currents and to transmit data tap-proof in quantum communication. In several projects, Fraunhofer ILT is developing customized laser systems for use in satellites and ground-based systems in order to meet these challenges.
LIDAR (Light Detection and Ranging) technologies have now proven themselves as a tool for investigating atmospheric processes. In collaboration with the Leibniz Institute of Atmospheric Physics (IAP), Fraunhofer ILT has developed high-performance LIDAR systems for climate research measurement campaigns in recent years. Used are high-energy UV lasers that can be used to measure aerosol and trace gas distributions in daylight. In addition to ground-based systems, Fraunhofer ILT is researching airborne and satellite-based LIDAR technologies relevant for future earth observation satellites. The institute is focusing on developing compact, powerful laser systems with high beam quality, minimal energy consumption and high reliability.
One outstanding example is the MERLIN mission (Methane Remote Sensing LIDAR Mission), a Franco-German cooperation for the global monitoring of methane emissions. As a greenhouse gas, methane is around 25 times more harmful to the climate than CO₂ and has a significant impact on climate change. "Together with Airbus Defense and Space in Ottobrunn near Munich, Fraunhofer ILT is developing and building a highly stable transmitter for a LIDAR system for the MERLIN mission that can detect methane in the Earth's atmosphere," explains Dipl.-Ing. Hans-Dieter Hoffmann, head of the Lasers and Optical Systems Department at Fraunhofer ILT. "This system makes it possible for the first time to measure the global distribution of methane concentrations in the Earth's lower atmosphere and their natural and man-made sources with high precision."
Another research area of the Nonlinear Optics and Tunable Lasers group, headed by Dr. Bernd Jungbluth, is components and assemblies for quantum communication. These include sources for entangled photons suitable for use in space. Fraunhofer ILT has developed the opto-mechanical platform ILT OPTOMECH for implementation into satellites.
Innovations for the Next Generation of Aerospace
Corrosion and material fatigue are general challenges in the aerospace industry since components have to withstand extreme conditions such as high temperatures, vibrations and harsh environments. Fraunhofer ILT is developing laser-based coating technologies that reduce the wear of components and extend their service life. These include the LMD process in particular, as well as thin-film technologies. Specifically, the institute is focusing on thermal barriers for engines and high-strength protective coatings for aircraft and satellite components.
Through targeted laser treatment such as LMD coating and heat treatment, material properties can be adapted to ensure greater resistance to corrosion and mechanical wear. This not only contributes to increased safety, but also reduces maintenance costs and extends the service life of critical systems.
Digitalization and artificial intelligence (AI) are increasingly being used to develop materials and economical concepts for the aerospace industry. This includes detecting errors in production automatically, optimizing laser-based joining techniques for new material classes and integrating AI into process monitoring.
With its interdisciplinary research approach, Fraunhofer ILT, Europe's largest research center in the field of laser technology, is a key player in aerospace innovation. The institute's developments contribute to building more efficient, more sustainable and more powerful systems for the future.
