SVS-Vistek is aggressively positioning itself for machine vision leadership with the launch of an ultra-high resolution industrial camera that merges the awesome power of a Sony 245.8-megapixel CMOS area sensor with the lightning-fast CoaXPress-12 (CXP-12) quad interface. One of the most advanced cameras ever introduced, the new SVS-Vistek shr811CCX12 enables the acquisition of precise, detail-rich 19200 x 12800 pixel color images at data transfer speeds of 12.4 frames per second to significantly improve quality, reliability, and yield.

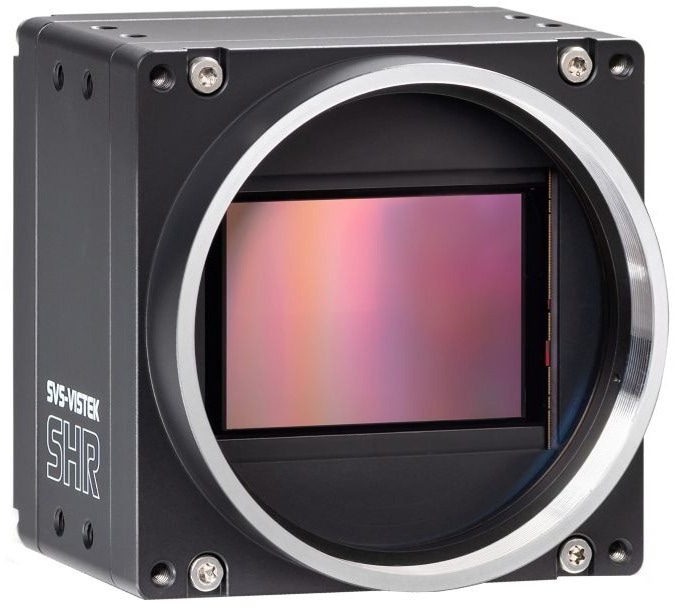

Image Credit: SVS-Vistek
The shr811CCX12 heightens accuracy and propels throughput in a variety of applications, especially those requiring a large field of view or analysis of intricate patterns. It brings unprecedented performance to surface inspection of semiconductor wafers, PCBs, solar panels, and high pixel density FPDs, while also having the capabilities to tackle tasks such as medical imaging, astronomy surveys, city mapping, aerial and ground surveillance, and Intelligent Transportation Systems.
The camera harnesses the next-generation CXP-12 interface that simplifies application design and setup with the familiar, easy-to-use CoaXPress standard. The shr811CCX12 features four CXP-12 micro-BNC connections, each capable of a maximum data transfer rate of 12.5 gigabits per second (Gbps) and 24VDC Power over CoaXPress (PoCXP). When these four links are aggregatned, the camera will achieve rates of 50 Gbps.
The latest model in SVS-Vistek's industrial proven SHR camera platform, the shr811CCX12 shares the SHR's high dynamic range, boosting light sensitivity with minimal noise. With more pixels capturing light, the camera can distinguish subtle differences in color or texture that low resolution cameras miss, improving performance in challenging lighting conditions. Like other SHR cameras, the shr811CCX12 also comes equipped with a comprehensive I/O with signal voltage, RS232, and galvanically isolated input, along with a sequencer, binning, and an integrated multichannel LED strobe controller.
The SVS-Vistek shr811CCX12 is engineered to withstand harsh industrial environments which would otherwise adversely affect image quality. It is protectively housed in an IP30 thermally-optimized metal enclosure that features a large M72 mount that can be easily adapted to any lens, and provides an operational temperature range of -10° to 60 °C (14° to 140 °F).
To ensure maximum customization, SVS-Vistek offers a variety of accessory options, allowing users to select their preferred lensing, lighting, and cabling solutions.
