Larson Electronics Introduces Aluminum I-Beam Mount Corrosion Resistant LED Light Fixture

Larson Electronics releases a Class 1 Division 2 hazardous location LED light fixture equipped with an aluminum I-beam mounting bracket to allow users to suspend the fixture from beams.

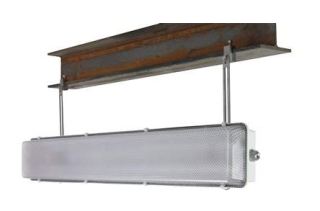

HALP-48-2L-LED-SIBAB aluminum I-beam mount LED light

The HALP-48-2L-LED-SIBAB aluminum I-beam mount LED light is U.S./Canada approved Class 1 Division 2 Groups A, B, C, and D, UL 1598A listed, and is specifically designed to handle the rigors of wet and corrosive marine environments. This four foot long, two lamp fixture is ideal for operators seeking a top quality hazardous location light that will improve light quality and reduce operating costs. The fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Eight corrosion resistant plastic latches secure the lamp cover to the housing and provide a firm lock against the seal to prevent drips and water intrusion. The 28 watt LED lamps produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. Each lamp produces 3,360 lumens at 120 lumens per watt, for a combined total of 6,720 lumens. This fixture is equipped with two aluminum I-beam clamps and two aluminum adjustable flange brackets. This custom combination allows operators to secure the light fixture to existing I-beams without penetrating them. Once installed the center of the light fixture housing will sit 1’ to 1 ½’ below the I-beam allowing operators to adjust the fixture 45° each direction. This fixture is universal voltage and operates on any voltage from 120V to 277V.
