New Type of Light Diffusion Discovered in Tiny Optical Fibers

Researchers at the Femto-ST Institute (CNRS/UFC/UTBM/ENSMM)1, working in collaboration with colleagues from the Charles Fabry Laboratory (CNRS/Institut d'Optique Graduate School), have just discovered a new type of light diffusion in tiny optical fibers 50 times thinner than a strand of hair! This phenomenon, which varies according to the fiber's environment, could be used to develop sensors that are innovative and highly sensitive. The work is published in the journal Nature Communications on October 24, 2014.

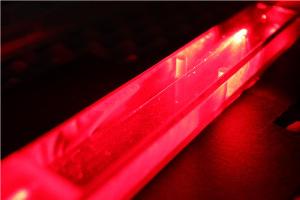

A red laser beam (helium-neon) passes through an optical microfiber measuring one micrometer in diameter. The fibre is encapsulated in a airtight system to avoid oxidation or breaking. © Thibaut Sylvestre, Institut Femto-ST/CNRS

Optical microfibres are silica fibres tapered down to a size 50 times smaller than a strand of hair, with an approximate diameter of one micrometer (a thousandth of a millimeter) or even less. To produce these tiny objects, researchers at the Charles Fabry Laboratory heated and stretched optical fibres used in telecommunications, measuring 125 micrometers in diameter. The remainder of the study was carried out at the Femto-ST Institute in Besançon. By injecting a laser beam in these silica microwires, the CNRS researchers observed a new type of Brillouin light scattering2 for the first time, involving surface acoustic waves.3 This discovery was subsequently confirmed by a numerical simulation, which helped verify the physical mechanism at play.

Since the diameter of the fibers is smaller than the wavelength of the light used (1.5 micrometers, in the infrared), the light is extremely confined inside. As it travels, it infinitesimally shakes the wire, displacing it by a few nanometers (one millionth of a millimetre). This distortion gives rise to an acoustic wave that travels along the fiber surface at a velocity of 3,400 meters per second, according to the results of the researchers. The wave in turn affects the propagation of the light, as part of the light radiation returns with a different wavelength in the opposite direction.

This phenomenon had never been observed previously, for it only occurs when light is confined in a subwavelength-diameter fiber. In standard optical fibers, light travels essentially in the core of the fiber (with a 10-micrometrer diameter), and consequently does not generate surface waves.

Since the waves generated by the confinement of the light travel along the surface of the microfibers, they are sensitive to environmental factors such as temperature, pressure and ambient gas. This makes it possible to design highly sensitive and compact optical sensors4 for industry. These results also help improve our knowledge of the fundamental interaction between light and sound on an infinitesimally small scale.

1 Femto-ST: Franche-Comté électronique mécanique thermique et optique - sciences et technologies (CNRS/Université de Franche-Comté/Université de technologie de Belfort-Montbéliard/Ecole nationale supérieure de mécanique et des microtechniques de Besançon).
2 "Inelastic" scattering of light by acoustic waves of a medium. In other words, the properties of the medium modify the path of light waves as well as their wavelength.
3 Waves of the same nature as the sound waves perceived by our ears, but with a much higher frequency, and therefore inaudible.
4 As opposed to electrical sensors, optical sensors are passive sensors (that do not need electricity), and which use the properties of light.
