Sep 27 2013
A new type of miniature camera system developed by engineers at the University of California, San Diego, promises to give users a big picture view without sacrificing high-resolution.

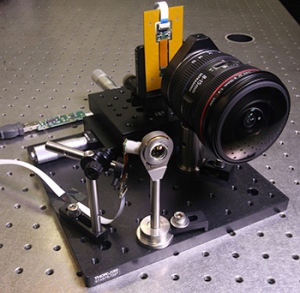

Monocentric-Lens
The new imager achieves the optical performance of a full-size wide-angle lens in a device less than one-10th of the volume of a regular lens.
It can image anything between half a meter and 500 meters away—a 100x range of focus—and boasts the equivalent of 20/10 human vision—0.2-milliradian resolution. Such a system could enable high-resolution imaging in micro-unmanned aerial vehicles, or smartphone photos more comparable to those from a full size single-lens reflex (SLR) camera, the researchers say.
“The major commercial application may be compact wide-angle imagers with so much resolution that they'll provide wide-field pan and ‘zoom’ imaging with no moving parts,” said project leader Joseph Ford, a professor in the Jacobs School of Engineering at UC San Diego.
Researchers will describe their novel device at The Optical Society’s Annual Meeting, Frontiers in Optics 2013, taking place Oct. 6 to 10 in Orlando, Fla.
To engineer the new system, researchers turned to monocentric lenses made of concentric glass shells, which are perfectly round like glass marbles. Their symmetry allows them to produce wide-angle images with high resolution and hardly any of the geometrical distortions common to fisheye lenses.
Though researchers have tried to use monocentric lenses for high-resolution wide-angle viewing in the past, they ran into two main problems. First, they had trouble conveying the rich information collected by the lens to electronic sensors that could record the image. Ford’s team addressed this problem using a dense array of glass optical fiber bundles that are polished to a concave curve on one side so that they perfectly align with the lens’ surface.
A second problem involved focusing. Researchers had expected that the fibers would have to move in and out to focus to different distances, or the lens would only provide perfect focus for a single direction. However, Ford’s team showed that the changes in axial distance between fibers and lens did not distort the image.
In his talk at Frontiers in Optics, Ford will describe a prototype system with a monocentric lens with 12 mm focal length, making it ultra-wide-angle, and a single imaging fiber bundle connected to a 5-megapixel image sensor. Ford and his colleagues at UC San Diego and Distant Focus Corporation are currently assembling a 30-megapixel prototype and plan to go even bigger in the future. “Next year, we’ll build an 85-megapixel imager with a 120-degree field of view, more than a dozen sensors, and an F/2 lens – all in a volume roughly the size of a walnut,” Ford said.
