American Industrial Systems Supplies Multi-Function Displays for Military Vehicle Applications

American Industrial Systems Inc. AIS, an ISO 9001:2008 is a certified supplier and manufacturer of rugged display computers, including multi-function control and display systems, multi-function workstations (MFW), multi-function consoles, and multi-function displays (MFD) with ruggedized touchscreen interface.

These are all compliant with military standards, and specifically designed for the COTS military marketplace; used in rugged, wheeled and tracked military vehicles, as well as ground control stations (GCS). AIS military embedded computing systems have the following certification ratings: MIL-STD-810G standard for drops, shocks, vibration, humidity, altitude, rain, dust and sand-resistance, temperature extremes; and MIL-STD-461F standard for EMI and EMC, for size, weight, power (SWaP); and are ideal for constrained military, ground army, and homeland defense applications. AIS COTS rugged computing systems provide highly reliable command, control, computing and communication (C4) capabilities for situational awareness and data processing in ground vehicle and shipboard deployments.

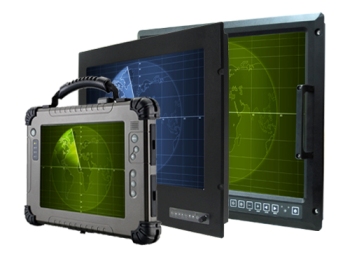

AIS full-range selections of COTS rugged military display computers are available in 8.4", 10.4", 15", 17", 19" and 20.1" screen sizes.

AIS offers Multi-function Display (MFD) and Multi-function Workstations (MFW) customization design service to meet customer-specific platform requirements and MIL-SPEC: MIL-STD-810G, MIL-STD-461F, MIL-STD-1275D, MIL-DTL-38999L, MIL-PRF-22885, MIL-L-85762A and MIL-STD-3009.

• MILVM08ID3S-T1-4RT: 8.4” multi-function control and display system is fully-Integrated 8.4 inch color TFT, 800 x 600 SVGA, 450 nits brightness, 600:1 contrast ratio, 160° (H) and 140° (V) viewing angle, resistive touch screen interface, Intel® Atom™ Processor D2550 1.86 GHz, 4GB DDR2 800/1066 MHz, 32GB SATA SSD, 2 x 10/100/1000 Ethernet, 1 x RS232/RS422/RS485, 2 x USB, 1 x VGA, 9V to 36V DC, aluminum enclosure and anti-corrosion treatments, IP65 on console level, -25°C to 55°C (-13°F to 131°F) operating temperature, and compliant with MIL-STD-810 and IEC60068-2-27 for anti-vibration and anti-shock.
• MILVM10ID3S-T2-HB-5RT: 10.4” multi-function control and display system is fully-Integrated 10.4 inch color TFT, 1024 x 768 XGA, 700 nits brightness, 1200:1 contrast ratio, 176° (H) and 176° (V) viewing angle, resistive touch screen interface, Intel® Atom™ Processor D2550 1.86 GHz, 4GB DDR2 800/1066 MHz, 32GB SATA SSD, 2 x 10/100/1000 Ethernet, 1 x RS232/RS422/RS485, 2 x USB, 1 x VGA, 9V to 36V DC, aluminum enclosure and anti-corrosion treatments, IP65 on console level, -25°C to 55°C (-13°F to 131°F) operating temperature, and compliant with MIL-STD-810 and IEC60068-2-27 for anti-vibration and anti-shock.
• MILVM15ID3S-M5-HB-5RT: 15” multi-function control and display system is fully-Integrated 15 inch color TFT, 1024 x 768 XGA, 800 nits brightness, 600:1 contrast ratio, 150° (H) and 110° (V) viewing angle, resistive touch screen interface, Intel® Atom™ Processor D2550 1.86 GHz, 4GB DDR2 800/1066 MHz, 32GB SATA SSD, 2 x 10/100/1000 Ethernet, 1 x RS232/RS422/RS485, 2 x USB, 1 x VGA, 9V to 36V DC, aluminum enclosure and anti-corrosion treatments, IP65 on console level, -25°C to 55°C (-13°F to 131°F) operating temperature, and compliant with MIL-STD-810 and IEC60068-2-27 for anti-vibration and anti-shock.
• MILRM17ID3S-A1-5RT: 17” multi-function operator console and workstation is fully-Integrated 17 inch color TFT, 1280 x 1024 SXGA, 350 nits brightness, 1000:1 contrast ratio, 170° (H) and 160° (V) viewing angle, resistive touch screen interface, Intel® Atom™ Processor D2550 1.86 GHz, 4GB DDR2 800/1066 MHz, 32GB SATA SSD, 2 x 10/100/1000 Ethernet, 1 x RS232/RS422/RS485, 2 x USB, 1 x VGA, 100V-240V AC JY27466 MIL Spec connector, aluminum enclosure and anti-corrosion treatments, IP65 on console level, -25°C to 55°C (-13°F to 131°F) operating temperature, and compliant with MIL-STD-810 and IEC60068-2-27 for anti-vibration and anti-shock.
• MILRM19ID3S-A2-5RT: 19” multi-function operator console and workstation is fully-Integrated 19 inch color TFT, 1280 x 1024 SXGA, 350 nits brightness, 1000:1 contrast ratio, 170° (H) and 160° (V) viewing angle, resistive touch screen interface, Intel® Atom™ Processor D2550 1.86 GHz, 4GB DDR2 800/1066 MHz, 32GB SATA SSD, 2 x 10/100/1000 Ethernet, 1 x RS232/RS422/RS485, 2 x USB, 1 x VGA, 100V-240V AC JY27466 MIL Spec connector, aluminum enclosure and anti-corrosion treatments, IP65 on console level, -25°C to 55°C (-13°F to 131°F) operating temperature, and compliant with MIL-STD-810 and IEC60068-2-27 for anti-vibration and anti-shock.
• MILRM20ID3S-A2: 20.1” multi-function operator console and workstation is fully-Integrated 20.1 inch color TFT, 1600 x 1200 UXGA, 300 nits brightness, 800:1 contrast ratio, 178° (H) and 178° (V) viewing angle, resistive touch screen interface, Intel® Atom™ Processor D2550 1.86 GHz, 4GB DDR2 800/1066 MHz, 32GB SATA SSD, 2 x 10/100/1000 Ethernet, 1 x RS232/RS422/RS485, 2 x USB, 1 x VGA, 100V-240V AC JY27466 MIL Spec connector, aluminum enclosure and anti-corrosion treatments, IP65 on console level, -25°C to 55°C (-13°F to 131°F) operating temperature, and compliant with MIL-STD-810 and IEC60068-2-27 for anti-vibration and anti-shock.
