Sep 18 2008

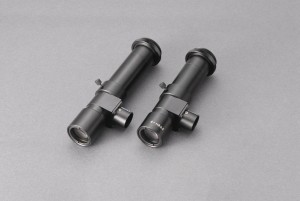

The new 5M-HR telecentric lens from Moritex has been designed for use with high resolution camera sensors (5 MPixel) with very small pixel pitch.
Offering high contrast and high resolution throughout the field of view the innovative design of the Moritex 5M-HR telecentric lens realises the amazing ultra-high quality image possible from the latest generation of high resolution camera sensors. Coming complete, with integrated coaxial lighting, the 5M-HR offers unmatched performance in applications including high definition discrete part inspection, component alignment and semiconductor manufacturing operations.
The Moritex 5M-HR lens includes a variable iris providing the user with the flexibility of adjusting and setting the depth of field. Incorporating integral coaxial telecentric lighting the 5M-HR lens provide high resolution (3 -13 micron according to camera pixel pitch) and high uniformity of illumination across the entire field of view. This in combination with low distortion, high contrast and a long working distance make the new 5M-HR telecentric lens a breakthrough tool for high definition inspection and alignment applications.
Moritex MML telecentric lenses maintain a constant view angle to the subject. This is achieved by keeping the optical ray paths parallel to each other. Lens telecentricity is crucial in vision and inspection applications where view angle and magnification errors need to be minimised. All Moritex MML's are packaged in compact, low mass designs, assembled to endure the rigours of even the most demanding machine vision and industrial inspection applications.
Benefiting from 30 years experience and expertise in the creation, manipulation and control of light Moritex has the expertise and comprehensive product portfolio to help customers select the correct components to achieve an optimised solution for their vision application.
For further information about the 5M-HR telecentric lens please contact Moritex at email [email protected] or by telephone on +49-89-56-82-6880 or +44-1223-301148.
