At its most basic level, the primary difference between a mirror and a lens is that a mirror reflects an image and a lens is something to look through to see an image.
While it would be possible to explore these differences in a much more technical and theoretical manner, this article will explore the similarities and differences between lenses and mirrors on a more practical level.

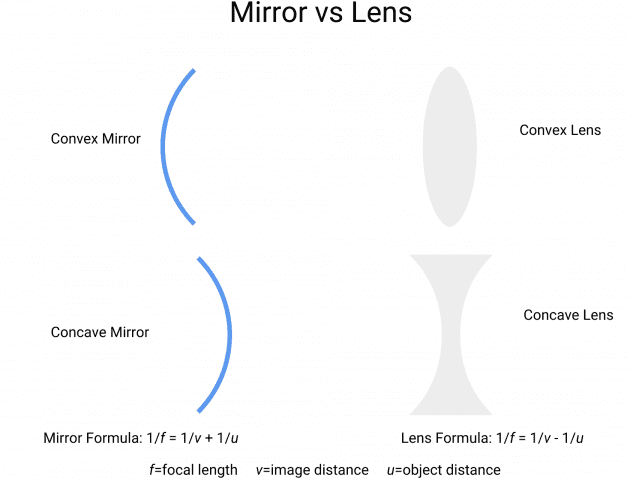

Mirror vs Lens. Image Credit: Avantier Inc.
What is a Mirror?
From a mechanical standpoint, a mirror is a sheet of substrate or metal that reflects any light that reaches it. This light generates a clear reflection of whatever object or scene is present in front of the mirror.
Mirrors can be manufactured by polishing one side of a surface and adding a coating of metal amalgam on the other. Mirrors can also be produced by polishing the surface of a naturally reflective metal, allowing light to bounce back without scattering.
The reflectivity of mirrors allows them to be used in many practical applications, with perhaps the most commonly used mirrors being those present in virtually every home and utilized for personal grooming and styling on a daily basis.
Uses of Mirrors
Other uses of mirrors include:
- Solar cookers: These devices utilize the sun’s natural heat to cook foodstuffs by employing a number of mirrors to reflect the sun’s rays toward a cooking vessel.
- Safety, security, safety, and law enforcement: Police and other security personnel frequently use one-way mirrors in a range of applications.
- Periscopes: Periscopes and optical mirrors are used in various industries, with mirrors forming a core component of these devices.
- Torchlights: Mirrors see routine use in torchlights and flashlights, with the mirrors in these devices used to reflect and direct the emitted light.
- Décor: Mirrors are a key element in the aesthetic design of homes, businesses, and other public spaces.
- Telescopes: Curved mirrors used in telescopes are able to magnify a viewed image by concentrating the light that reflects to the viewer.
Types of Mirrors
There is more than one type of mirror, with different types of mirror being better suited to certain applications. Some of the more common mirror types are outlined here.
Plane Mirror
A plane mirror features a flat reflective surface that creates an erect and virtual image of any object in front of it. When a parallel beam of light is directed at the surface of a plane mirror, it is reflected back as parallel as well.
Spherical Mirror
A spherical mirror is a mirror with a curved reflective surface, whether concave or convex. The reflective surface of a concave mirror curves inwards, facing the center of the sphere. Mirrors with this configuration will produce a magnified image, prompting their widespread use in astronomical telescopes and shaving lenses.
These types of mirrors are also commonly used as optical components to intensify the light emitted by car headlights, flashlights, and lighthouses.
The reflective surface of a convex mirror bulges outwards and away from the center of the sphere. Common examples of convex mirrors include intersection mirrors and car side mirrors.
What is a Lens?
A lens is best understood as a piece of glass or any transparent material that refracts light passing through it. A lens features two surfaces on its two opposite sides, and either one or both of these surfaces can be curved.
Light beams passing through lenses are bent to varying degrees, causing images viewed lenses to appear larger or smaller.
Uses of Lenses
Lenses see widespread use in a range of settings, including:
- Telescopes and microscopes: Lenses are essential in these tools, as the lenses will magnify the image of the object being viewed.
- Eyeglasses and contact lenses: Highly customized optical lenses are used in eyeglasses and contact lenses to help improve the wearer’s vision.
- Torchlights and flashlights: Lenses are used in these devices to either concentrate or scatter the emitted beam of light.
- Projectors: These popular devices use lenses to focus light and project an image onto a surface.
Types of Lenses
There are essentially two different types of lenses:
Convex Lenses
These lenses feature a surface that curves outwards, with light beams passing through the lens converging towards the focus. This optical lens design is utilized in magnifying glasses, telescopes, flashlights, eyeglasses, and contact lenses.
Concave Lenses
These lenses feature a surface that curves inwards, prompting any light beam passing through it to diverge and spread out. These lenses are generally used in projectors.
Key Differences Between a Mirror and a Lens
- Lenses are completely transparent, while mirrors are fully reflective. A mirror consists of a transparent base coated on one side with a metallic reflective layer. In contrast, a lens is a clear substrate shaped to bend incoming light via its curved surfaces.
- Mirrors reflect light, and lenses refract it. When light hits a mirror, it bounces off at an angle, creating an image of the object in front of it. Lenses, however, allow light to pass through and bend it in the process.
- Mirrors have one critical surface, whereas lenses have two. Mirrors can be flat (plane) or curved (spherical) and feature a single reflective surface. Lenses, on the other hand, possess two surfaces that influence the light passing through them.
- Mirrors operate according to the laws of reflection, whereas lenses adhere to the laws of refraction.
- A mirror reflects 100 % of the light that strikes its surface, while a lens bends all the light that passes through it.
- The formula for image formation by a mirror is 1v+ 1u= 1f. Image formation in a lens: 1v- 1u= 1f.
- Plane mirrors lack a focal point, while lenses typically have two focal points, labeled F and 2F.
Conclusion
After delving into the nature of mirrors and lenses, it is evident that their similarities largely stop at their common material—typically glass. Although these optical devices perform distinct functions, they are used for similar purposes across various applications.
