Armadillo SIA is the innovative leader of the fiber optic industry and takes pride in introducing its new line of high NA optical fiber: ArmD® Ultra NIR-Ge. The Germanium-doped fibers provide matchless performance with their 0.37, 0.44, and 0.53 numerical apertures.
Armadillo SIA fibers are ideal for an extensive range of applications, from spectroscopy to sensing. ArmD® Ultra NIR-Ge fibers display outstanding spectral transmission ranging from 400 to 2500 nm.
Features

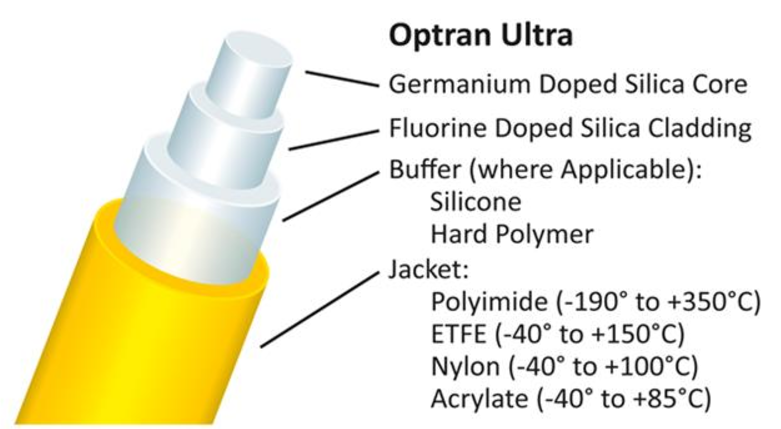

- Comes with a germanium-doped silica glass core
- NA expansion is very low
- Step-index profile: High resistance offered against laser damage
- Biocompatible material: Sterilizable with the help of ETO and other methods

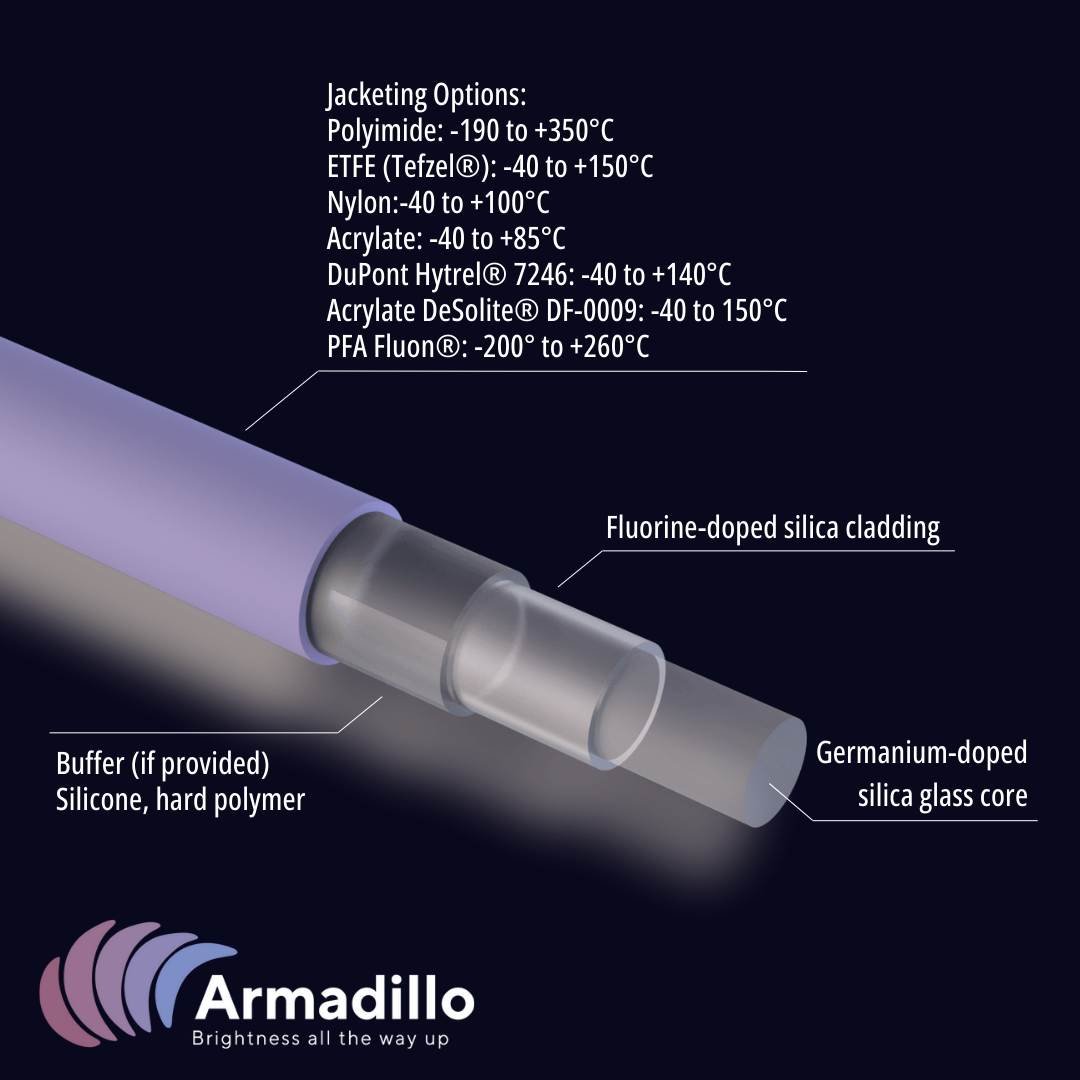

- Comes with unique jackets for high vacuum, high temperatures, and harsh chemicals

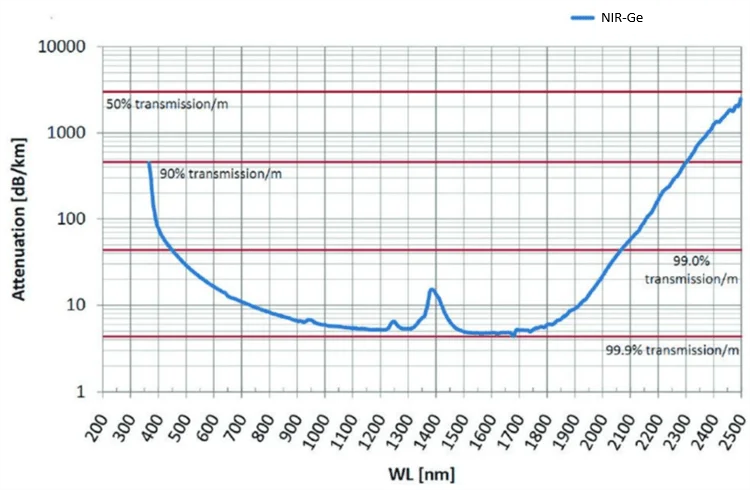

ArmD® Ultra NIR-Ge Fiber Attenuation Curve
Image Credit: Armadillo SIA
Image Credit: Armadillo SIA
