Multiple factors are needed for the successful manufacturing of vacuum windows. Understanding and using the latest technology, quality control through sophisticated metrology instruments, and understanding of material characteristics are all crucial to their design and manufacture.
When taken with an innovative culture and comprehensive and wide-ranging experience in precision optics manufacturing, it is possible to hone such technical abilities to warrant the best manufacturing of vacuum windows.
What are Vacuum Windows?
Vacuum windows are built to separate different environments while allowing light to pass through. They are typically utilized in situations where a controlled atmosphere, like a vacuum, should be preserved on one side of the window while permitting optical observation or the passage of laser beams.
They are constructed from materials that have high transparency to certain wavelengths of light and formidable mechanical strength, widely available materials such as fused silica (which is known for its low thermal expansion as well as its high transparency on the ultraviolet to infrared spectrum).
Other materials include sapphire (very hard and durable, appropriate for harsher environments); borosilicate (optimal thermal resistance, low thermal expansion, and high chemical durability); and Zinc Sulfide (high transparency in both the visible and infrared spectrum as well as favorable mechanical strength and resistance to thermal shock).
To improve performance, vacuum windows can be equipped with anti-reflective coatings, which decrease reflection losses and boost transmission. Coatings are chosen according to the specific wavelength range that the application uses.
Most vacuum windows should be able to endure the pressure differential between the vacuum environment and the external atmosphere. This demands high mechanical strength and attentive design to stave off deformation or breakage.
In addition, vacuum windows should operate under different temperatures in multiple applications without notable thermal expansion or distortion, which can impact optical performance.
Vacuum windows are usually utilized in laser systems to transmit laser beams into or out of vacuum chambers; in spectroscopy where they enable light to enter or exit spectrometers while preserving a vacuum environment for precise measurements.
They are also used in microscopy, where they facilitate the observation of samples kept under vacuum conditions; in space use cases, where they protect tools wherever a vacuum is present; and in semiconductor manufacturing, where they are utilized in vacuum chambers for procedures such as chemical vapor deposition or etching.
They are usually mounted in specifically designed frames or flanges that form a seal between the window and the chamber, making sure that no leaks can compromise the vacuum. Ultimately, by combining suitable materials, coatings, and design features, vacuum windows guarantee superior optical performance while preserving the integrity of the vacuum environment in precision optical systems.
Required Technical Capabilities
Different technical abilities are needed to successfully construct vacuum windows, and these abilities facilitate the building of durable, high-performance optics.
Advanced Manufacturing Capabilities
Sophisticated manufacturing abilities are crucial for building high-performing vacuum windows, as they enable the end product to meet strict performance and reliability standards. Examples of these include precision machining, which is crucial for shaping materials with very tight tolerances.
Such precision is essential, as even small variations can considerably affect the optical performance and structural integrity of vacuum windows. Additionally, advanced polishing methods are used to attain high optical clarity and surface smoothness. These approaches reduce surface irregularities, defects, and subsurface damage, decreasing scattering and improving the transmission of light through the window.
Sophisticated polishing procedures are required to attain an almost flawless surface finish, which is important for applications that require excellent optical performance. Moreover, the use of advanced coating facilities is key for applying anti-reflective and other specialized coatings with high precision.
Such coatings play a key role in improving the vacuum window performance by decreasing the number of reflections, enhancing the transmission of light, and offering protection against environmental factors including moisture and chemical exposure. The possibility of applying these coatings uniformly with precision is key and only possible with sophisticated technological abilities and expertise.
The integration of advanced technologies and tools during the manufacturing process permits greater control and consistency during production, making sure that each vacuum window is produced to meet the standards.
This mix of precision machining, advanced polishing, and sophisticated coating methods highlights the significance of sophisticated manufacturing abilities for building high-quality, reliable vacuum windows that can perform well even in challenging environments.

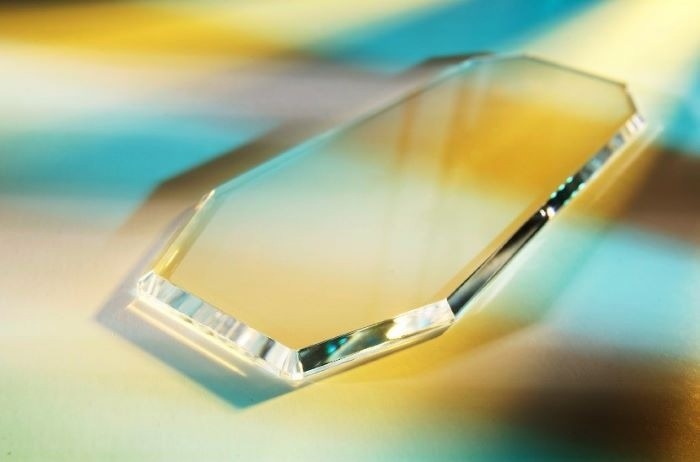

Image Credit: Zygo Corporation
Material Expertise.
Mastery of a broad spectrum of materials is yet another crucial technical ability. As discussed earlier, manufacturers should be able to work with different optical materials, including fused silica, sapphire, borosilicate, and Zinc Sulfide.
They should also have a solid understanding of the properties of these materials and their behaviors under different environmental conditions, such as vacuum and varying temperatures.
For instance, fused silica is renowned for its superb thermal stability and low thermal expansion, making it perfect for use cases in which the window will undergo considerable temperature changes. In a high-temperature setting, fused silica preserves its shape and optical clarity, enabling reliable performance. Moreover, its low coefficient of thermal expansion reduces the chance of thermal stress and potential cracking, which is key for preserving the vacuum window’s integrity. Meanwhile, sapphire is known for its extraordinary hardness and durability.
Sapphire's high mechanical strength makes it appropriate for harsh environments where the window may be exposed to abrasive particles or high-pressure settings. Its durability means that the window stays intact and operational even under mechanical stress, which is necessary in aerospace and industrial use cases where reliability and durability are important.
An excellent relationship with material suppliers is also crucial. The grade and quality of raw optical materials can considerably affect the final window’s optical and mechanical performance.
The lead time for raw materials can significantly contribute to project deadlines overall. Thus, the polisher and raw material vendor should work closely to guarantee timely compliance with the vacuum window’s final performance specifications.
Quality Control
Quality control and metrology are pivotal technical abilities that ensure that all optical components meet the specifications and standards. This involves using sophisticated metrology instruments that assess surface quality, flatness, and other crucial parameters with high accuracy.
These state-of-the-art tools can detect tiny deviations from design specifications, meaning that even the slightest imperfections can be flagged and corrected. High-precision assessments are critical as any aberrations can significantly impact vacuum windows' performance, particularly in high-stakes use cases in aerospace and semiconductor manufacturing.
Using sophisticated metrology instruments like laser interferometers and 3D optical profilers enables a detailed understanding of the optical surfaces' properties, facilitating precise control over the whole manufacturing process.
Such precision ensures that components perform reliably under different operational conditions, including extreme temperatures or vacuum environments. Accompanying these sophisticated instruments, rigorous quality control procedures must be applied at different production stages. This includes exhaustive inspections of raw materials, in-process evaluations, and final product testing, ensuring consistency and adherence to strict quality standards.

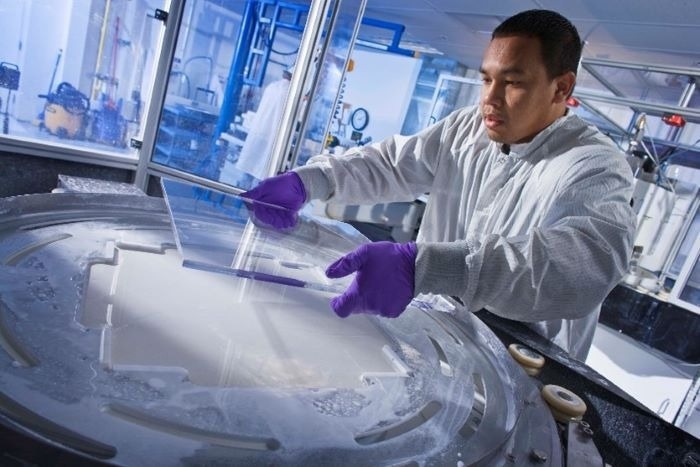

Image Credit: Zygo Corporation
Innovation and Experience
Consistent investment in R&D enables the discovery and use of new materials, coatings, and manufacturing approaches that improve the performance of optical products and lead to considerable financial savings for clients.
An innovation-driven culture inside an organization drives the technical abilities required to address shifting market needs and helps predict future requirements, preserving enduring success and customer satisfaction.
Experience and expertise also play key roles in manufacturing high-performance optical parts. They provide a solid understanding of the intricacies in designing and producing advanced vacuum windows and applying the latest technologies to maximize outcomes. This experience can be measured in years, and the breadth of sectors served.
Specialized understanding enables the production of custom-made technical solutions that meet the unique needs of the aerospace, semiconductor, specialist instrumentation, and beyond industries. By merging the latest technology with industry-specific insights, complicated challenges can be addressed, performance can be improved, and innovation can be spearheaded in vacuum window manufacturing.
Summary
Manufacturing vacuum windows depends on sophisticated technical abilities and rigorous quality control measures. These windows, extensively utilized in use cases spanning from laser systems to space tools, are constructed via precision machining and advanced polishing to attain high optical clarity, while sophisticated coating approaches improve light transmission and longevity.
Quality control is additionally important to ensure that each window meets strict performance specifications. An innovation-driven culture and wide-reaching experience in precision optics further enable manufacturers to constantly enhance their approaches and adapt to new challenges, thus maintaining high standards in vacuum window production.
